Optimise your business and improve energy usage with NHP’s SMART Energy Management range

Buildings form one of the largest cost centres in businesses and represent an untapped opportunity for improving bottom line. Understanding how a building performs with respect to energy consumption begins with having access to the right information - which should be easy to find and interpret.

NHP can provide you with both hardware and software-based offerings to centralise hourly trending data from a wide range of SMART devices locally or remotely to meet the requirements of the NCC 2019, part J8.3(c).

SMART eBox

NHP has made energy management as simple as plug and play with the new SMART eBox. Its ability to centralise and store hourly energy data from a wide range of energy meters and other devices makes it the ideal solution for meeting the requirements of the National Construction Code 2019, part J8.3(c).

The SMART eBox can be utilised as a datalogger, gateway or controller for various meters, environmental sensors, and other SMART power distribution devices via Modbus (RTU or Ethernet). The eBox can be used to centralise other webserver-based solutions (such as the VMU-C and UWP 3.0), and operate as a BACnet/IP gateway, seamlessly integrating any Modbus capable device into a Building Management System (BMS).

Product features
  • All-in-one enclosed EMS solution - datalogger, controller, gateway, and webserver with 4GB onboard storage
  • Compatible with a wide range of energy meters and power distribution products – connect 64+ devices to a single SMART eBox
  • Easy to install with a guaranteed compliance to NCC Section J8.3
  • Full customisable web-based user interface – view and analyse data that is most important to you on any browser, smartphone, or tablet
  • Stay aware of your energy consumption with scheduled reports and email/SMS alerts
  • No additional software required and no ongoing subscription fee
  • Ability to push live data to cloud platforms such as Carlo Gavazzi EM², Microsoft Azure and AWS
  • Built and commissioned by NHP, making the installation process as easy as our Concept Panelboards
UWP3.0

The UWP 3.0 is a powerful solution for monitoring, centralising and storing a building's energy usage data as well as offering an open interface for building management functions. Its comprehensive communication capabilities offer the ability to act as a datalogger, gateway or controller for BACnet devices and gather data from meters, environmental sensors and other Modbus devices, including our suite of power distribution products. It can also be used in retrofit applications to centralise other web-server based solutions with newly installed meters.

To simply the monitoring of critical loads and site power status, NHP has developed a range of drivers for the UWP 3.0 to link to NHP's power distribution products.

Available drivers

EM²

The EM² Server is a software solution provided as a virtual machine for installation on a PC or server. It aggregates data from up to 100 UWP3.0 or VMU-C devices into a centralised web server and synoptics page, visualising the layout and locations of connected meters.

Energy metering

From the sale of the first NHP energy meter in the 1970's, NHP's intimate industry knowledge combined with our comprehensive product offering makes NHP a valuable partner, providing the confidence to take on the most demanding of challenges. Assisting with the planning, implementation, and review process, NHP is there each step to ensure its customers achieve their energy efficiency goals. Click here to view the range of energy management products from NHP including energy meters, power quality analysers and current transformers.


Product range

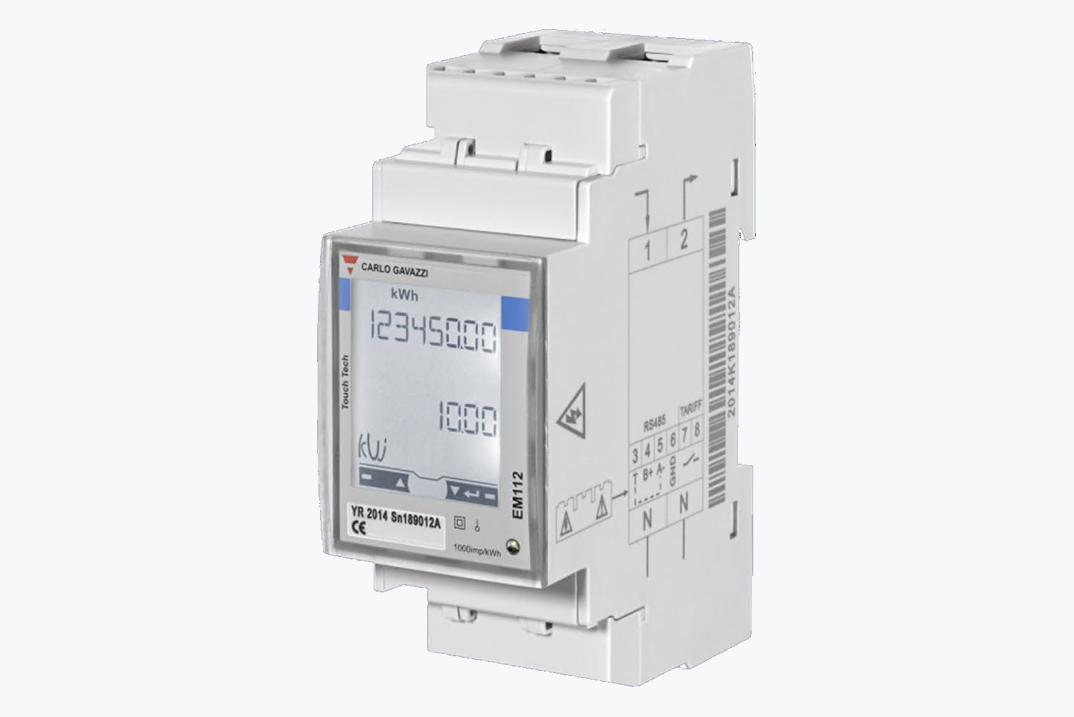

Single-phase-meteres
Single phased meters
ThreePhaseMeters
Three phase meters

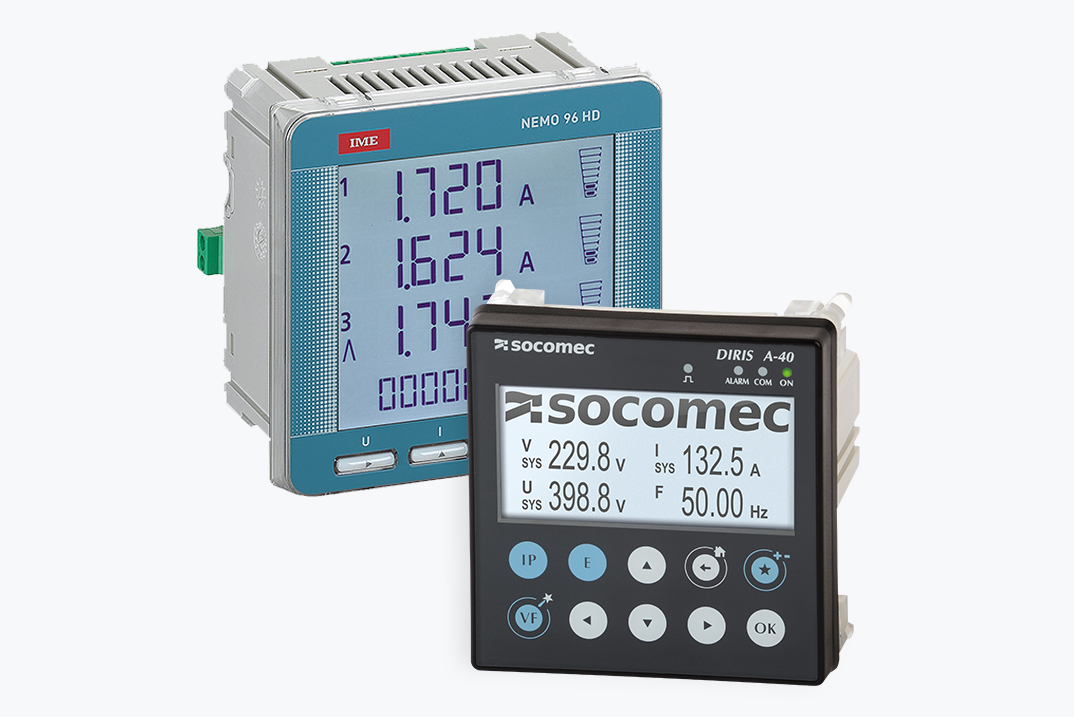

Multifunction
Three phase multi function meters

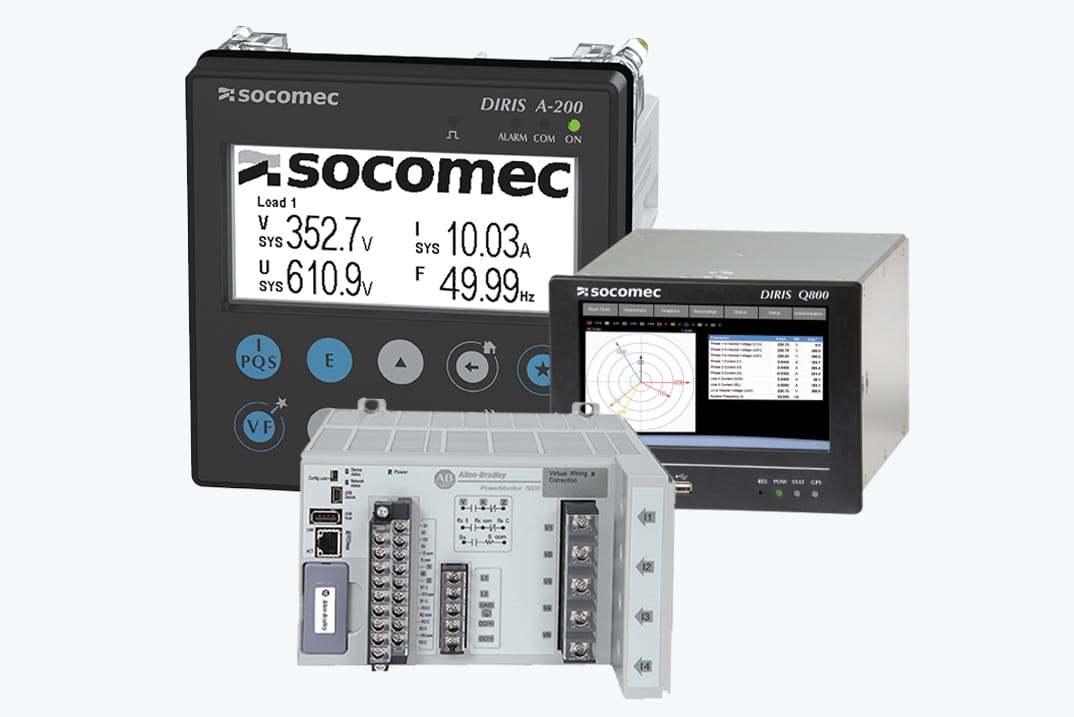

Power-Analysers
Power Analysers
Branch-Circuit-Monitoring
Branch circuit monitoring
Pulse-acquisition-meter
Pulse acquisition meters
Current-Transformers
Current transformers
Transducers
Transducers
