Product image is indicative only and provided as a guide.
IME

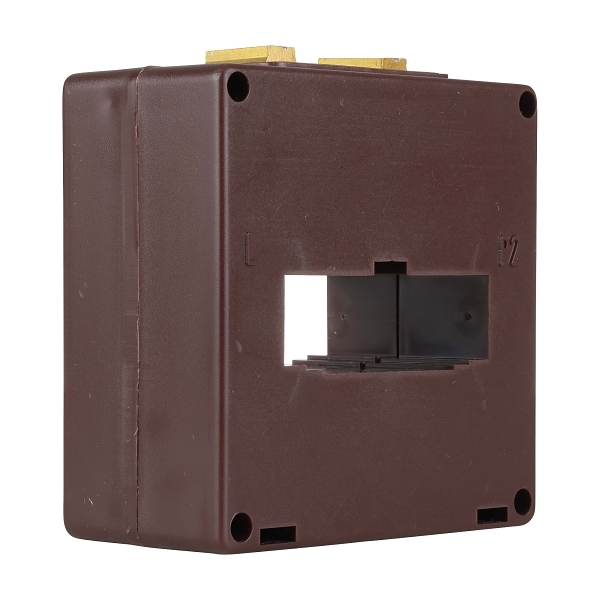

IME TAS80 Solid Core Current Transformer Horizontal 1200A/5A 82 x 32mm 5VA Class 1, 20VA Class 0.5
- Item No.:
- TAS8012005
- Product Range:
- Solid Core CT
Download product datasheet
Construction
- Current transformer type
- Solid core
- Material housing
- Polycarbonate (PC)
Electrical
- Primary rated current
- 1200 A
- Secondary current on CT
- 5 A
- Rated operating frequency
- 47-63 Hz
- Max. operating voltage (Umax)
- 0.72 V
- Rated short time thermal current Ith (x primary current)
- 72 kA
- Rated continuous thermal current Icth (x primary current)
- 72 kA
- Accuracy class
- 0.5
- Insulation class (IEC 61869-1, 61869-2)
- B
- Security factor
- 5
Environment
- Storage temperature
- -40...85 °C
