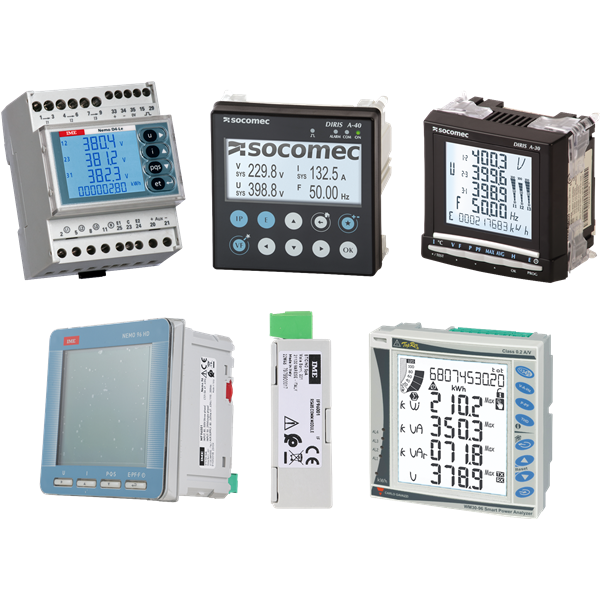

Multifunction Meters
For applications where more than the basic energy variables are required, NHP offers a range of three-phase multifunction meters to measure advanced and critical system variables such as harmonics and power factor.
Product Range

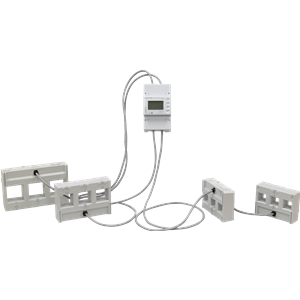

Socomec Countis P QCT Dual and Quad Multifunction Meters and Current Transformers
The Socomec Countis P QCT range is a powerful, space-saving Quick Connect multifunction meter solution for dual (2QCT) and quad (4QCT) load monitoring. These Modbus (RS485) comms-enabled meters measure all system variables, including four-quadrant energy monitoring (±kWh, ±Pdmd, ±kVArh), Total Harmonic Distortion (THDi and THDv) and maximum demand power and current. Designed for fast and reliable installation, the Countis P QCT range uses RJ12 Quick Connect CT blocks with a broad current range f...

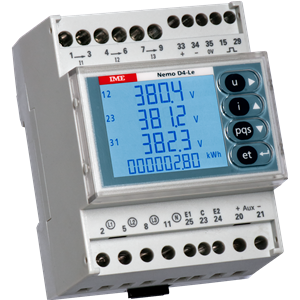

IME NEMO D4-Le Multifunction Energy Meters
The NEMO D4-Le is a compact 4-DIN module multifunction meter measuring all system variables including harmonic currents and voltages up to the 50th harmonic order. This series provides the options for pulse output or native serial MODBUS communication protocol. NEMO D4-Le meters are also available with Rogowski coils, perfect for retrofit applications.

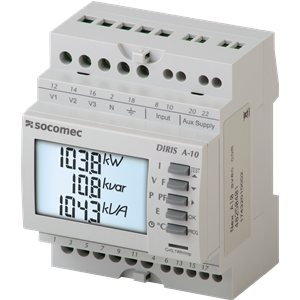

Socomec DIRIS A-10 Multifunction Meters
The DIRIS A-10 is a compact DIN mount multifunction meter with temperature monitoring used in low voltage networks to measure electrical parameters and total harmonic distortion (THD) up to the 51st order. It is easy to install and configure with the ability to identify CT installation or wiring errors. Additional features such as an integrated temperature sensor and dual tariff management allow for application flexibility without using additional DIN space. This series provides options for puls...

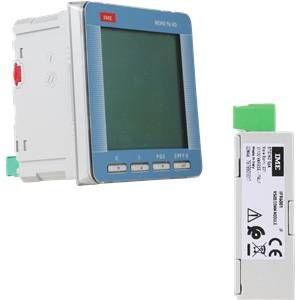

IME NEMO 96 HD Multifunction Meters
The NEMO 96 HD is a panel mount modular three-phase multifunction meter measuring all system variables including min/max demand values and harmonic distortion for current and voltage up to the 22nd harmonic. The NEMO 96 HD+ provides additional functionality that makes it suitable for both LV and MV applications with a programmable VT ratio from 1 to 1500. Perfect for retrofit applications, the NEMO 96 HD with Rogowski coil solution is also available in various diameter sizes. Note: Rogowski coil...
