Socomec

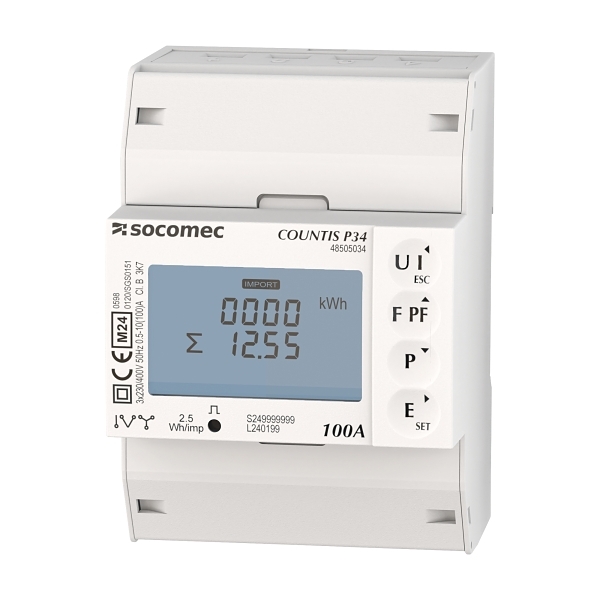

Socomec Countis P34 Three Phase Direct Connect Energy Meter 100A RS485 Pulse 4 DIN
Item No. 48505034
Product Range: Countis P
Component Type (ETIM Class)
Kilowatt-hour meter
Electrical
Pole typeThree conductor/four conductor
Nominal current (In)100 A
Max. current (Imax)100 A
Nominal voltage (Un) N-L230-230 V
Nominal voltage (Un) L-L400-400 V
Frequency50-60 Hz
Supply voltage184-276 V
Type of electric connectionScrew connection
Accuracy classB
Communication
Type of interfaceModbus
Pulse outputOptic
Pulse typeS0
With lock codeYes
Construction
ModelDirect measurement
Type of meterElectronic
Suitable forPurchase/supply
Type of indicationDigital
Mounting methodDRA (DIN-rail adapter)
Degree of protection (IP), front sideIP51
EEC40 signatureNo
IP ratingIP20
Mechanical
Escapement mechanismNo
Dimensions
Width72 mm
Depth66 mm
Height100 mm
Width in number of modular spacings4
Environment
Operating temperature-40...70 °C
Certificates/Approvals
ApprovalMeasuring Instruments Directive
