Steute

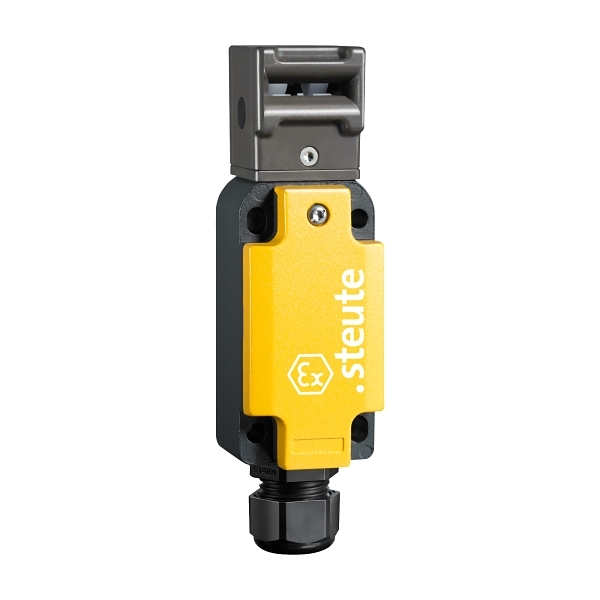

Steute HAE Safety Sensor Ex 1,2,21,22 Safety Switch 2 NC M20
- Item No.:
- EEXES98ST02
- Product Range:
- HAE Limit Switch
Download product datasheet
Electrical
- Number of contacts as normally closed contact
- 2
- Number of contacts as normally open contact
- 0
- Number of contacts as change-over contact
- 0
- Type of control element
- Other
- Type of electric connection
- Cable entry metrical
- Rated operation current Ie at AC-15, 230 V
- 6 A
- Rated operation current Ie at DC-13, 230 V
- 0 A
- Forced opening
- Yes
Mechanical
- Switching function
- Slow-action switch
- Switching function latching
- Yes
Construction
- Material housing
- Metal
- IP rating
- IP66
- Construction type housing
- Other
- Coating housing
- Powder coating
- Alignment of the control element
- Other
- Suitable for safety functions
- Yes
Dimensions
- Height of sensor
- 38 mm
- Length of sensor
- 118 mm
- Width sensor
- 40 mm
Environment
- Rated temperature
- -20...60 °C
Communication
- Type of interface
- None
- Type of interface for safety communication
- None
Certificates/Approvals
- Explosion safety category for gas
- Other
- Explosion safety category for dust
- Other
