Sprecher + Schuh

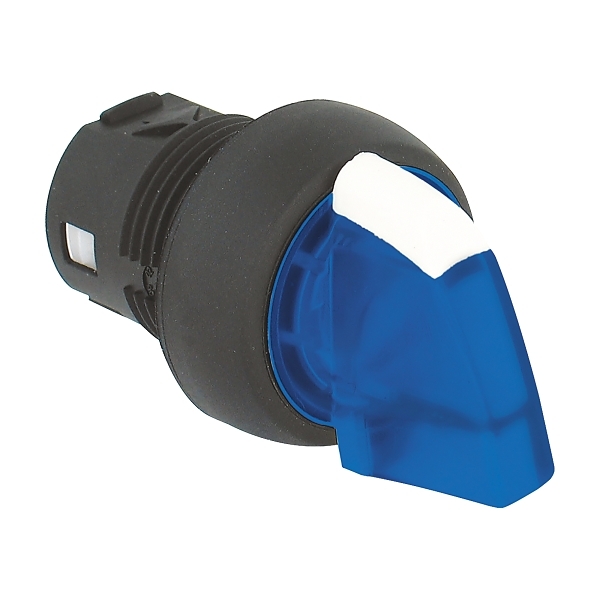

Sprecher and Schuh D7 Selector Switch 22.5mm Head Only Plastic STD KNB 2 POS Illuminated BLU MAIN
- Item No.:
- D7PLSM26
- Product Range:
- D7
Download product datasheet
Electrical
- Type of control element
- Short thumb-grip
Mechanical
- Number of switch positions
- 2
- Switching function latching
- No
- Spring-return
- No
- Max. vibration acceleration
- 10 m/s²
- Max. vibration frequency, operational
- 2000 Hz
- Max. shock acceleration
- 100 g
- Mechanical life (service cycles)
- 300000 cycles
Construction
- Colour control element
- Blue
- Colour indicator light cap
- White
- Material front ring
- Plastic
- Colour front ring
- Other
- Degree of protection (IP), front side
- IP66
- Degree of protection (NEMA)
- Other

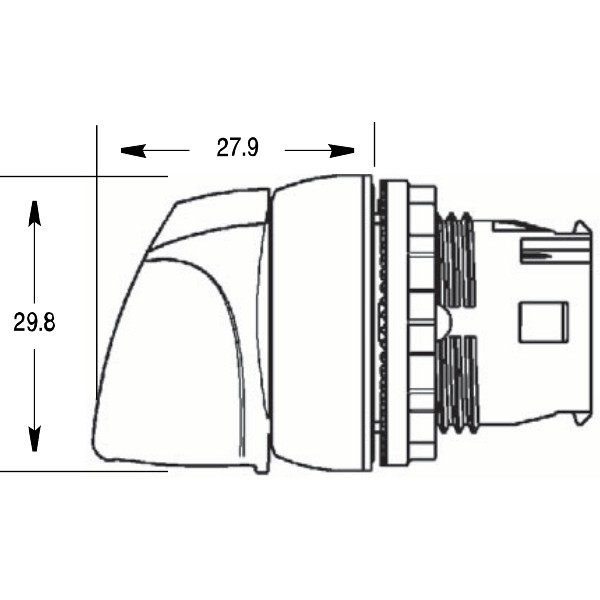

Dimensions
- Hole diameter
- 22.5 mm
- Width opening
- 29.8 mm
- Height opening
- 28 mm
Environment
- Operating temperature
- -25...70 °C
Photometric
- Suitable for illumination
- Yes
