Product image is indicative only and provided as a guide.
Terasaki

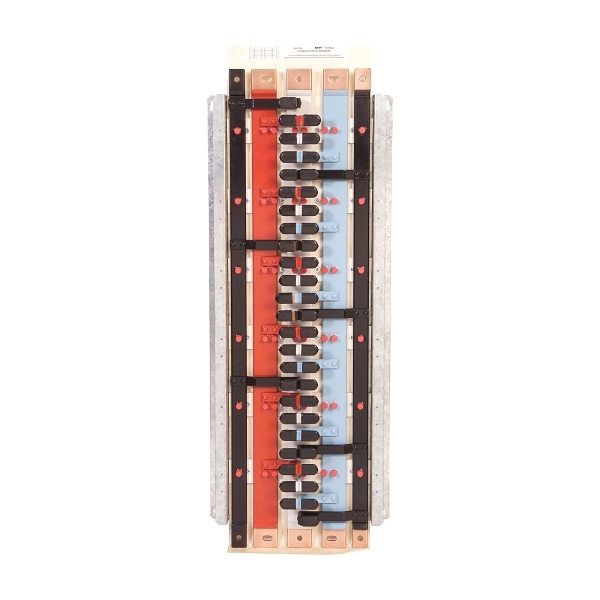

NHP Terasaki TemBreak PRO TemWay XAP Chassis 800A 4Phase 24 Way
- Item No.:
- XAP80024U4POLE
- Product Range:
- XAP
Download product datasheet
Electrical
- Rated current
- 800 A
- Number of poles
- 24
- Number of phases input
- 3P+N
- Nominal voltage
- 440 V
- Short time withstand current Icw, 0.5 sec
- 40 kA
- Short time withstand current Icw, 1 sec
- 36 kA
Construction
- Assembly arrangement
- NC REED switch
- Suitable for devices with N-conductor
- Yes
- IP rating
- IP20
Dimensions
- Height (pan)
- 390 mm
