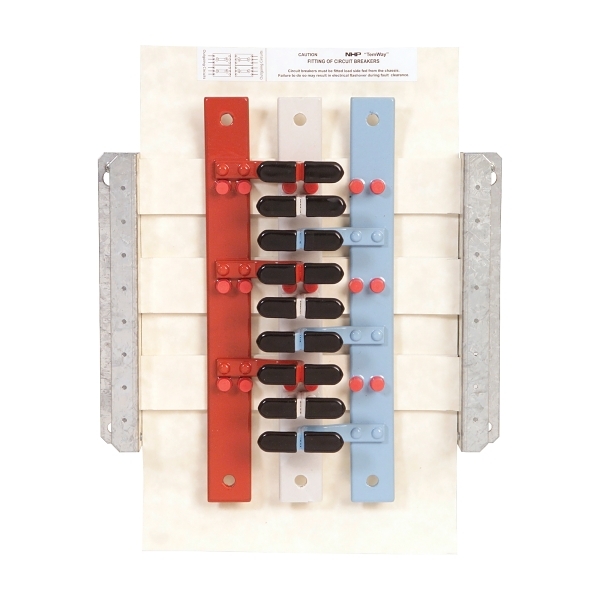

Product image is indicative only and provided as a guide.
Terasaki
NHP Terasaki TemBreak 2 TemWay XA Chassis 630A 30 Way
- Item No.:
- XA63030U
- Product Range:
- XAP
Download product datasheet
Electrical
- Rated current
- 630 A
- Number of poles
- 30
- Number of phases input
- 3-phase
- Nominal voltage
- 690 V
- Short time withstand current Icw, 0.5 sec
- 40 kA
- Short time withstand current Icw, 1 sec
- 36 kA
Construction
- Assembly arrangement
- NC REED switch
Dimensions
- Height
- 650 mm
- Depth
- 110 mm
- Height (pan)
- 450 mm
