Stanilite

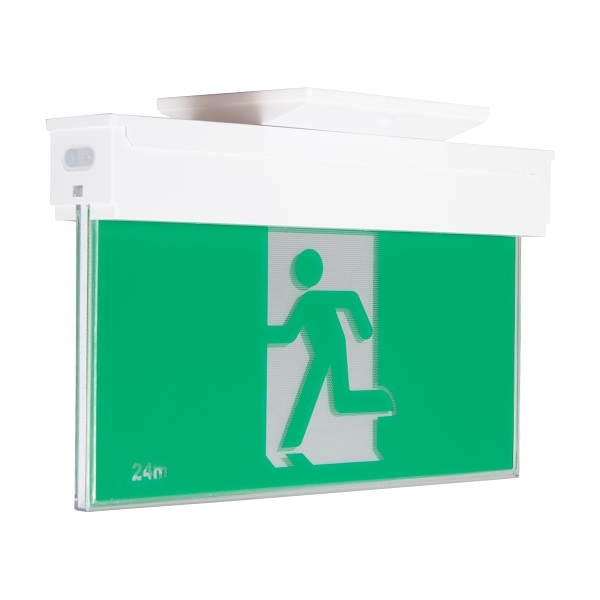

Stanilite Platinum Exit IP65 Edgelit Picto Ceiling Mounted

Item No. WPELLBE
Product Range: Single Point Platinum Exit Lighting
Component Type (ETIM Class)
Emergency luminaire
Electrical
Operating modeMaintained
Nominal voltage240 V
Voltage typeAC
Max. system power2.3 W
Viewing distance24 m
Nominal operation time50000 h
Driver typeLED
Construction
With remote switch connectionNo
With remote controlNo
Mounting methodWall/ceiling/suspension
With pictogramYes
With light sourceYes
Material housingPolycarbonate (PC)
Colour housingWhite
Material coverAcrylic
IP ratingIP65
Photometric
Lamp typeLED not exchangeable
Photometric classification (C0)E2
Photometric classificationE1.25
Dimensions
Width60 mm
Height/depth215 mm
Length362 mm
Width of cutout80 mm
Length of cutout450 mm
Environment
Rated ambient temperature according to IEC62722-2-10-40 °C
Certificates/Approvals
Compliant to AS/NZS CISPR 15Yes
Compliant to AS/NZS 2293.3:2018Yes
Compliant to AS/NZS 60598.1:2017Yes
Compliant to AS/NZS 60598.2.22:2005Yes
