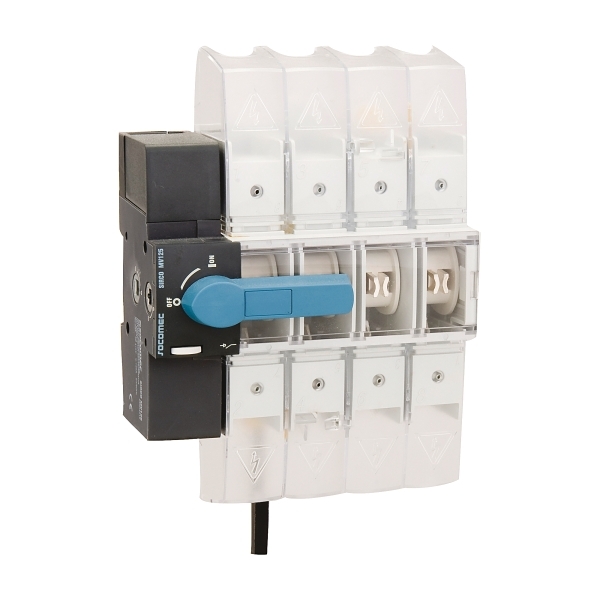

Product image is indicative only and provided as a guide.
Socomec
Socomec VLBM Visual Load Break Switch Kit, w/ External Handle, 4P 160A
- Item No.:
- VLBM1604P
- Product Range:
- VLBM
Download product datasheet
Electrical
- Rated permanent current at AC-21, 400 V
- 160 A
- Rated uninterrupted current Iu
- 160 A
- Number of poles
- 4
- Rated operation power at AC-23, 400 V
- 75 kW
- Rated operation current Ie at AC-23a, 400 V
- 160 A
- Rated operation current Ie at AC-23a, 500 V
- 100 A
- Rated operation current Ie at AC-23a, 690 V
- 80 A
- Rated operation current Ie at DC-23, 220 V
- 160 A
- Rated short-time withstand current lcw
- 7 kA
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 189 mm
- Width
- 135 mm
- Depth
- 69.9 mm
- Conductor cross section solid (solid, stranded)
- 10-70 mm²
- Connectable conductor cross section
- 10-70 mm²
Construction
- Degree of protection (IP), front side
- IP65
- Version as main switch
- Yes
- Version as reversing switch
- No
- Number of switches
- 1
- Suitable for front mounting 4-hole
- No
- Suitable for front mounting centre
- No
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- No
- Interlockable
- Yes
