Product image is indicative only and provided as a guide.
PROCONECT

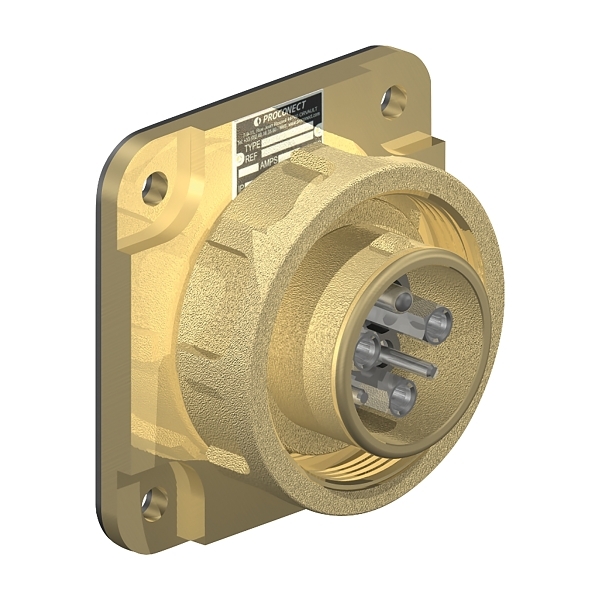

PROCONECT 3PV4 Appliance Inlet, 3P+N+E+2p, 200A, suits 50mm2 cable, w/ Crimp Terminals
- Item No.:
- V4AR450
- Product Range:
- 3PX/3PV
Download product datasheet
Popular Accessories
Construction
- Construction type
- Inlet
- Material insulation body
- Other
- Contact material
- Other
- Material screw
- Stainless steel
- IP rating
- IP67
Electrical
- Amperage
- 200 A
- Voltage
- 1-3300 V
- Contact configuration
- 3P+N+E+2P
Environment
- Operating temperature
- -30...60 °C
Dimensions
- Width
- 116 mm
- Length
- 116 mm
- Height
- 80 mm
- Weight
- 1.8 kg
