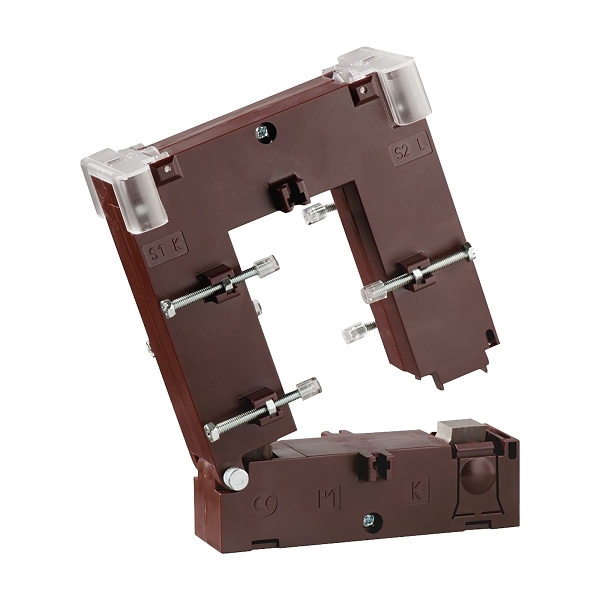

IME TRA580 Split Core Current Transformer 400A/1A 80 x 50mm 3VA Class 1, 1.5VA Class 0.5
- Item No.:
- TRA5804001A
- Product Range:
- SVG Floor Standing
Download product datasheet
Construction
- Current transformer type
- Split core
- Model
- Through-feed current converter
- With shock protection
- Yes
- Snap mounting
- No
- Secondary connection
- Screw connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 400 A
- Secondary current on CT
- 1 A
- Rated operating frequency
- 47-63 Hz
- Max. operating voltage (Umax)
- 0.72 V
- Rated short time thermal current Ith (x primary current)
- 24 kA
- Rated continuous thermal current Icth (x primary current)
- 24 kA
- Accuracy class
- 0.5
- Insulation class (IEC 61869-1, 61869-2)
- B
- Security factor
- 15
Environment
- Storage temperature
- -40...85 °C
