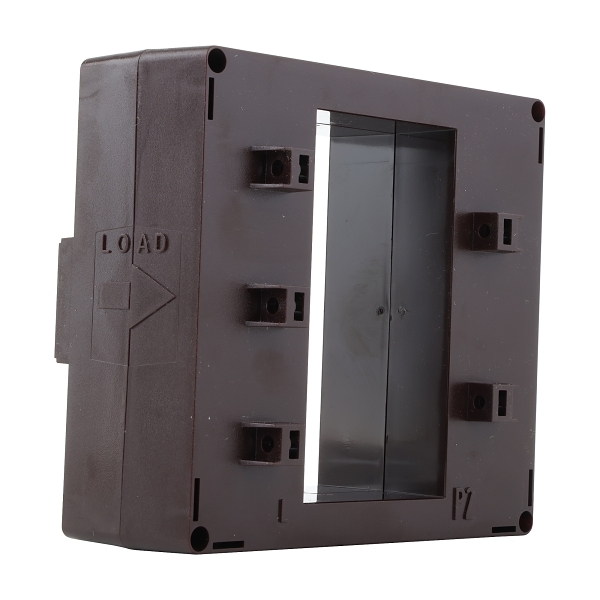

Product image is indicative only and provided as a guide.
IME
IME TAS102 Solid Core Current Transformer 1000A/1A 102 x 54mm 15VA Class 1, 12VA Class 0.5
- Item No.:
- TAS102B10001A
- Product Range:
- Solid Core CT
Download product datasheet
Construction
- Current transformer type
- Solid core
- Material housing
- Polycarbonate (PC)
- Model
- Attachable current transformer
- With shock protection
- Yes
- Snap mounting
- Yes
- Secondary connection
- Screw connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 1000 A
- Secondary current on CT
- 1 A
- Rated operating frequency
- 47-63 Hz
- Max. operating voltage (Umax)
- 0.72 V
- Rated short time thermal current Ith (x primary current)
- 60 kA
- Rated continuous thermal current Icth (x primary current)
- 60 kA
- Accuracy class
- 0.5
- Rated burden, class 0.5
- 12 VA
- Rated burden, class 1
- 15 VA
Environment
- Storage temperature
- -40...85 °C
