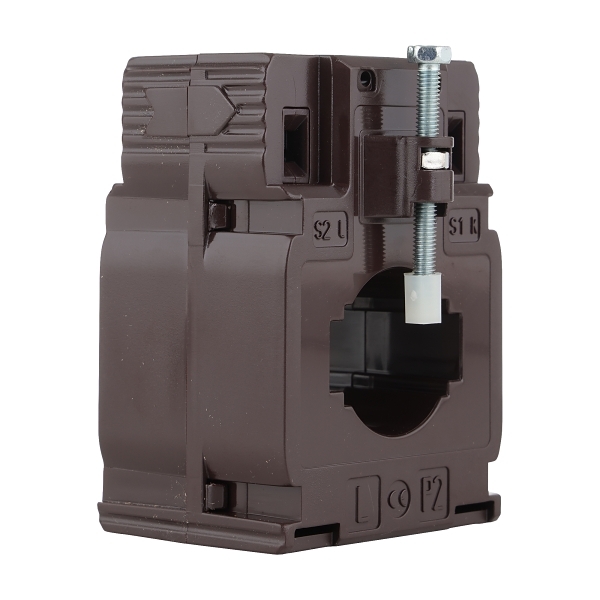

Product image is indicative only and provided as a guide.
IME
IME TA327 Solid Core Current Transformer 250A/1A 27mm 8VA Class 1, 6VA Class 0.5
- Item No.:
- TA3272501A
- Product Range:
- Solid Core CT
Download product datasheet
Construction
- Current transformer type
- Solid core
- Material housing
- Polycarbonate (PC)
- Model
- Attachable current transformer
- With shock protection
- Yes
- Snap mounting
- Yes
- Secondary connection
- Screw connection
- Number of primary inputs
- 1
Electrical
- Primary rated current
- 250 A
- Secondary current on CT
- 1 A
- Rated operating frequency
- 47-63 Hz
- Max. operating voltage (Umax)
- 0.72 V
- Rated short time thermal current Ith (x primary current)
- 15 kA
- Rated continuous thermal current Icth (x primary current)
- 15 kA
- Accuracy class
- 0.5
- Insulation class (IEC 61869-1, 61869-2)
- B
- Security factor
- 5
Environment
- Storage temperature
- -40...85 °C
Dimensions
- Opening diameter
- 27 mm
