Socomec

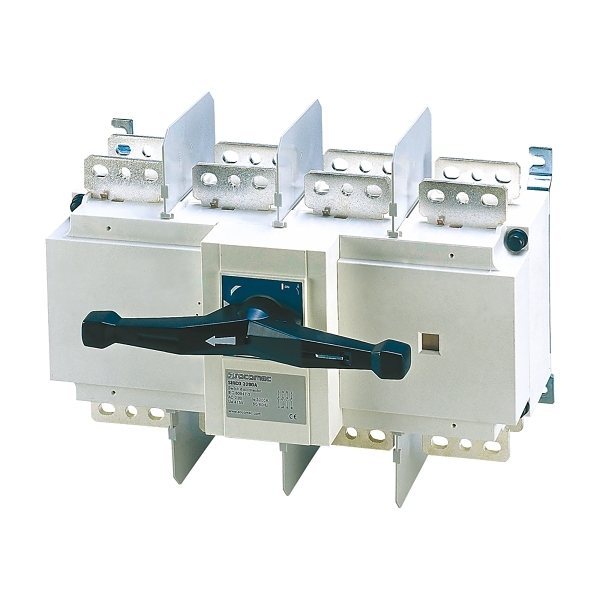

Socomec SLB Load Break Switch kit, w/ External Handle, 4P 3200A
- Item No.:
- SLB32004P
- Product Range:
- SLB
Download product datasheet
Electrical
- Max. rated operation voltage Ue AC
- 12000 V
- Rated permanent current at AC-21, 400 V
- 3200 A
- Rated uninterrupted current Iu
- 3200 A
- Number of poles
- 4
- Rated operation power at AC-23, 400 V
- 710 kW
- Rated operation current Ie at AC-23a, 400 V
- 1600 A
- Rated operation current Ie at AC-23a, 500 V
- 1000 A
- Rated operation current Ie at AC-23a, 690 V
- 800 A
- Rated operation current Ie at DC-23, 220 V
- 1250 A
Mechanical
- Padlock locking
- Yes
Dimensions
- Height
- 235 mm
- Width
- 492 mm
- Depth
- 110 mm
Construction
- Degree of protection (IP), front side
- IP65
- Version as main switch
- Yes
- Version as reversing switch
- No
- Number of switches
- 1
- Suitable for front mounting 4-hole
- No
- Suitable for front mounting centre
- No
- Suitable for distribution board installation
- Yes
- Suitable for intermediate mounting
- No
- Interlockable
- No
