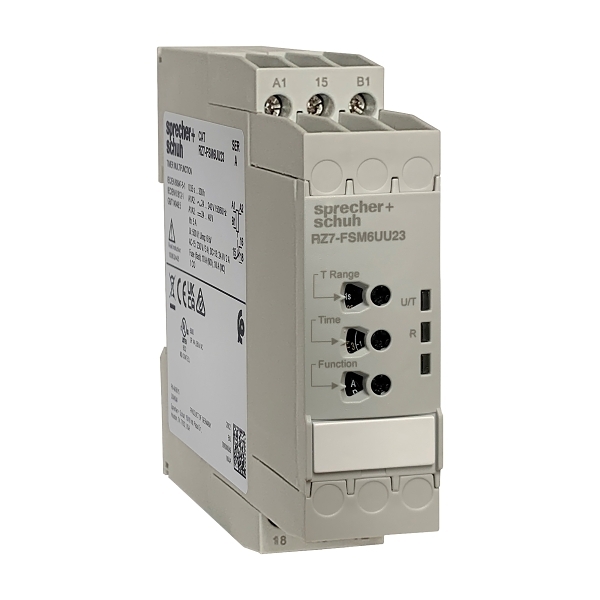

Product image is indicative only and provided as a guide.
Sprecher + Schuh
Sprecher and Schuh Timer 10 Multi Function 24-48VDC/24-240VAC Supply 2 CO 0.05S-300HR
- Item No.:
- RZ7FSM7UU23
- Product Range:
- RZ7
Download product datasheet
Electrical
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at DC
- 24-48 V
- Rated control supply voltage Us at AC 60HZ
- 24-240 V
- Rated control supply voltage Us at AC 50HZ
- 24-240 V
- Number of outputs, undelayed, change-over contact
- 2
- Nominal current
- 5 A
- Rated operation current Ie at DC-13, 24 V
- 2 A
- Type of electric connection
- Screw connection
- Function delay-on energization
- No
Mechanical
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Mechanical lifetime (control contacts)
- 30000000 c (contacts)
- Max. shock acceleration
- 7 g
Dimensions
- Height
- 85.6 mm
- Depth
- 105.9 mm
- Width
- 22.5 mm
Construction
- Degree of protection (IP), front side
- IP40
- Degree of protection (IP), rear side
- IP40
Environment
- Operating temperature
- -25...60 °C
