Product image is indicative only and provided as a guide.
Steute

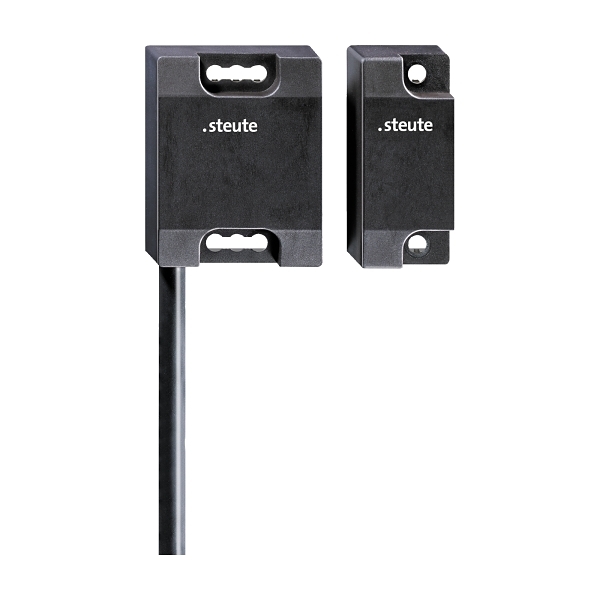

Steute Non-contact Interlock Safety Magnetic Switch Plastic 1NC 1NO IP69K 2m Cable
- Item No.:
- RCSI561O1S2MIP69KX
- Product Range:
- Non-contact Interlock
Download product datasheet
Electrical
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 0
- Type of control element
- Other
- Type of electric connection
- With cable preassembled
- Rated operation current Ie at AC-15, 230 V
- 0 A
- Rated operation current Ie at DC-13, 230 V
- 0 A
- Forced opening
- No
Mechanical
- Switching function latching
- No
- With status indication
- No
Dimensions
- Cable length
- 2 m
- Height of sensor
- 16 mm
- Length of sensor
- 50 mm
- Width sensor
- 40 mm
Construction
- Material housing
- Plastic
- IP rating
- IP69
- Construction type housing
- Other
- Alignment of the control element
- Other
- Suitable for safety functions
- Yes
Environment
- Rated temperature
- -25...85 °C
Communication
- Type of interface
- None
- Type of interface for safety communication
- None
Certificates/Approvals
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
