Product image is indicative only and provided as a guide.
Stanilite

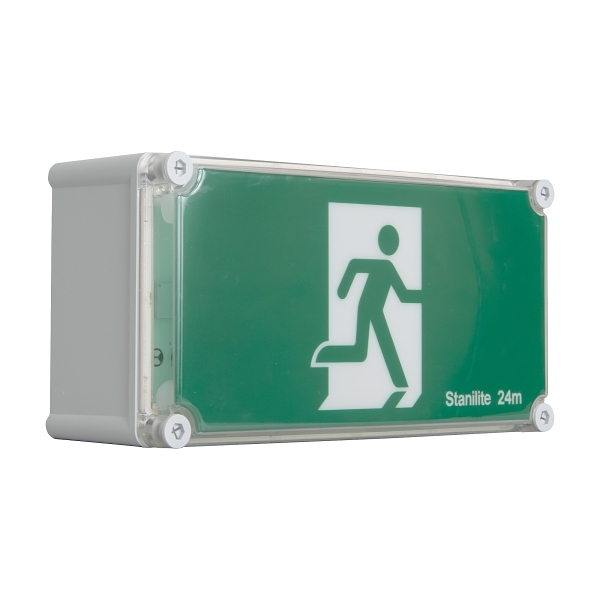

Stanilite Nexus Pro Platinum Exit Lighting LED Waterproof Pictograph
- Item No.:
- PWEXPROLEDP1
- Product Range:
- Pro Platinum Exit Lighting
Download product datasheet
Product Features
- IP67 weatherproof enclosure
- UV stabilised vandal resistant (IK08)
- 10 year design life
Popular Accessories
Communication
- Monitoring equipment
- Bluetooth
Electrical
- Operating mode
- Maintained
- Nominal voltage
- 240 V
- Voltage type
- AC
- Max. system power
- 3.2 W
- Viewing distance
- 24 m
- Nominal operation time
- 100000 h
- Driver type
- LED
Construction
- With remote switch connection
- No
- With remote control
- No
- Mounting method
- Wall surface mounted
- With pictogram
- Yes
- With light source
- Yes
- Material housing
- Polycarbonate (PC)
- Colour housing
- Grey
- Material cover
- Polycarbonate (PC)
- IP rating
- IP67
Dimensions
- Width
- 130 mm
- Height/depth
- 190 mm
- Length
- 380 mm
Mechanical
- Impact strength
- IK10
Photometric
- Lamp type
- LED not exchangeable
- Photometric classification (C0)
- D1.25
- Photometric classification
- C1.25
Environment
- Rated ambient temperature according to IEC62722-2-1
- 0-40 °C
Certificates/Approvals
- Compliant to AS/NZS CISPR 15
- Yes
- Compliant to AS/NZS 2293.3:2018
- Yes
- Compliant to AS/NZS 60598.1:2017
- Yes
- Compliant to AS/NZS 60598.2.22:2005
- Yes
