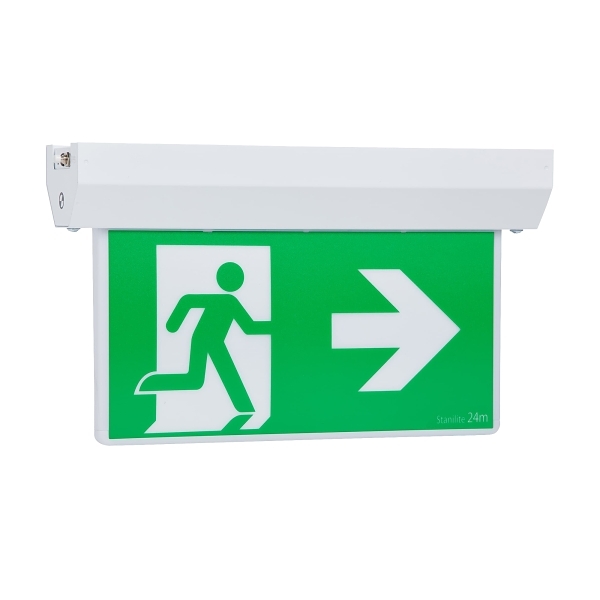

Stanilite Nexus LX Signature Exit Lighting LED Edgelit Surface
- Item No.:
- PLSNXSLED
- Product Range:
- Nexus LX Signature Exit Lighting
Download product datasheet
Communication
- Monitoring equipment
- Cable system monitoring
Electrical
- Operating mode
- Maintained
- Nominal voltage
- 240 V
- Voltage type
- AC
- Max. system power
- 2.71 W
- Viewing distance
- 24 m
- Nominal operation time
- 100000 h
- Driver type
- LED
Construction
- With remote switch connection
- No
- With remote control
- No
- Mounting method
- Ceiling surface mounting
- With pictogram
- Yes
- With light source
- Yes
- Material housing
- Steel
- Colour housing
- White
- Material cover
- Polycarbonate (PC)
- IP rating
- IP20
Dimensions
- Width
- 79 mm
- Height/depth
- 220 mm
- Length
- 375.5 mm
Photometric
- Lamp type
- LED not exchangeable
Environment
- Rated ambient temperature according to IEC62722-2-1
- 0-40 °C
Certificates/Approvals
- Compliant to AS/NZS CISPR 15
- Yes
- Compliant to AS/NZS 2293.3:2018
- Yes
- Compliant to AS/NZS 60598.1:2017
- Yes
- Compliant to AS/NZS 60598.2.22:2005
- Yes
