Stanilite

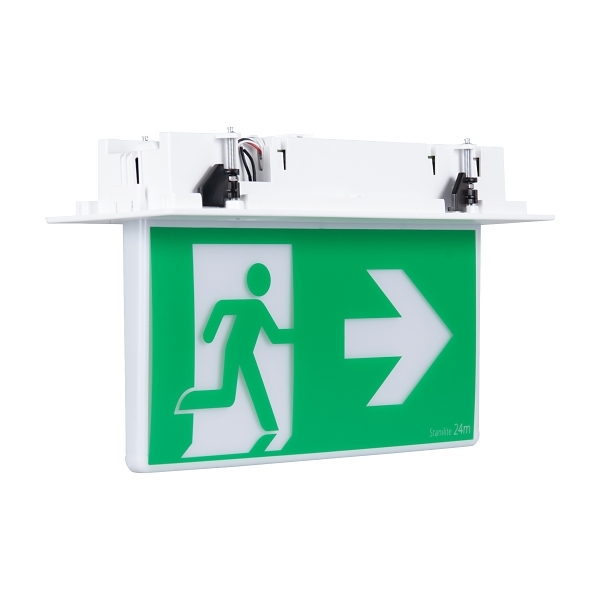

Stanilite Nexus Pro Platinum Exit Lighting LED Edgelit Recessed Pictograph
- Item No.:
- PLRPROLEDP
- Product Range:
- Pro Platinum Exit Lighting
Download product datasheet
Product Features
- Architecturally pleasing slim line design
- One-box solution, overall light weight and snap n’ clip mechanism allows for quick and easy installation
- Suits ceiling thickness 1mm-19mm

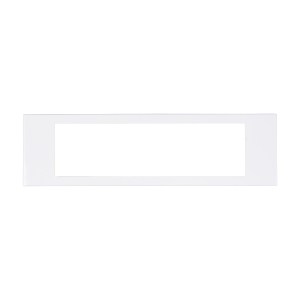

- Adaptor plate available for use when upgrading older edgelit exit signs - see accessories
- 10 year design life
Popular Accessories
Communication
- Monitoring equipment
- Bluetooth
Electrical
- Operating mode
- Maintained
- Nominal voltage
- 240 V
- Voltage type
- AC
- Max. system power
- 2.4 W
- Viewing distance
- 24 m
- Nominal operation time
- 100000 h
- Driver type
- LED
Construction
- With remote switch connection
- No
- With remote control
- No
- Mounting method
- Recessed
- With pictogram
- Yes
- With light source
- Yes
- Material housing
- Polycarbonate (PC)
- Colour housing
- White
- Material cover
- Plastic
- IP rating
- IP20
Dimensions
- Width
- 120 mm
- Height/depth
- 164 mm
- Length
- 370 mm
- Length of cutout
- 348 mm
Photometric
- Lamp type
- LED not exchangeable
- Photometric classification (C0)
- D2
- Photometric classification
- E1.6
Environment
- Rated ambient temperature according to IEC62722-2-1
- 0-40 °C
Certificates/Approvals
- Compliant to AS/NZS CISPR 15
- Yes
- Compliant to AS/NZS 2293.3:2018
- Yes
- Compliant to AS/NZS 60598.1:2017
- Yes
- Compliant to AS/NZS 60598.2.22:2005
- Yes
