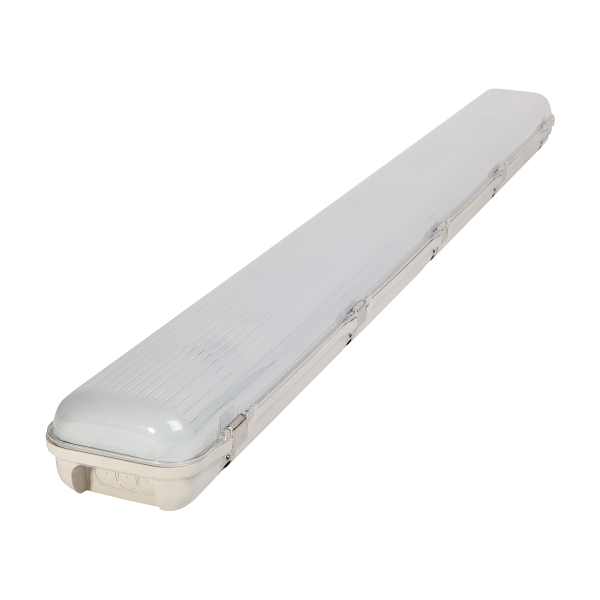

Product image is indicative only and provided as a guide.
Stanilite
Stanilite Single Point Platinum Batten LED IP65 EM 4600 Lumens MD
- Item No.:
- PBLWEM46LMMD
- Product Range:
- Single Point Platinum Batten
Download product datasheet
Popular Accessories
Electrical
- Operating mode
- Maintained
- Nominal voltage
- 240 V
- Voltage type
- AC
- Max. system power
- 39.5 W
- Nominal operation time
- 75000 h
- Driver type
- LED
Construction
- With remote switch connection
- No
- With remote control
- No
- Mounting method
- Wall/ceiling/suspension
- With pictogram
- No
- With light source
- Yes
- Material housing
- Polycarbonate (PC)
- Colour housing
- Grey
- Material cover
- Polycarbonate (PC)
- IP rating
- IP65
Dimensions
- Width
- 140 mm
- Height/depth
- 90 mm
- Length
- 1560 mm
Mechanical
- Impact strength
- IK08
Photometric
- Lamp type
- LED not exchangeable
- Photometric classification (C0)
- D80
- Photometric classification
- D63
Environment
- Rated ambient temperature according to IEC62722-2-1
- 0-40 °C
Certificates/Approvals
- Compliant to AS/NZS CISPR 15
- Yes
- Compliant to AS/NZS 2293.3:2018
- Yes
- Compliant to AS/NZS 60598.1:2017
- Yes
- Compliant to AS/NZS 60598.2.22:2005
- Yes
