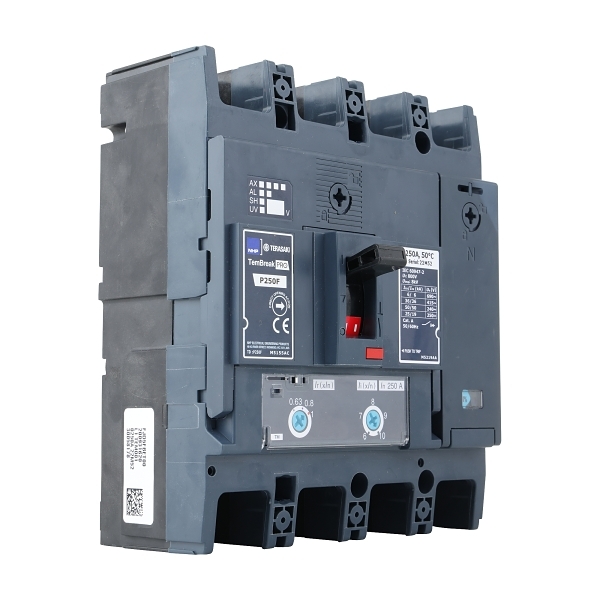

Product image is indicative only and provided as a guide.
Terasaki
Terasaki TemBreak PRO MCCB 250 Frame 36kA 4P 200A Adj. Thermal Adj. Magnetic
- Item No.:
- P250F4200TM
- Product Range:
- TemBreak PRO
Download product datasheet
Electrical
- Rated current In
- 200 A
- Number of poles
- 4
- Max. rated operation voltage Ue AC
- 690 V
- Rated ultimate short-circuit breaking capacity lcu at 415 V, 50 Hz
- 36 kA
- Rated service short-circuit breaking capacity lcs at 415 V, 50 Hz
- 36 kA
- Type of protection trip unit
- Thermal/magnetic release
- Trip curve
- Adj. thermal, adj. magnetic
- Frame size rating
- 250 A
- Long time overload protection adjustment range
- 125-200 A
Environment
- Pollution degree
- 3
- Rated surrounding temperature without derating
- 50 °C
- Rated temperature
- -5...70 °C
- Maximum operating temperature
- 70 °C
- Storage temperature
- -10...70 °C
- Allowable relative humidity
- 0-85 %
- Max. altitude before derating
- 2000 m
Dimensions
- Connectable conductor cross section
- 35-185 mm²
- Height
- 165 mm
- Width
- 140 mm
- Pole connection pitch
- 35 mm
- Built-in depth
- 68 mm
- Depth (toggle included)
- 95.5 mm
- Weight
- 2 kg
Mechanical
- Mechanical life (service cycles)
- 30000 cycles
- Max. vibration acceleration
- 19 m/s²
- Max. vibration frequency, operational
- 16.7 Hz
- Max. vibration duration
- 12 min
Certificates/Approvals
- Standard
- AS/NZS IEC 60947.2
