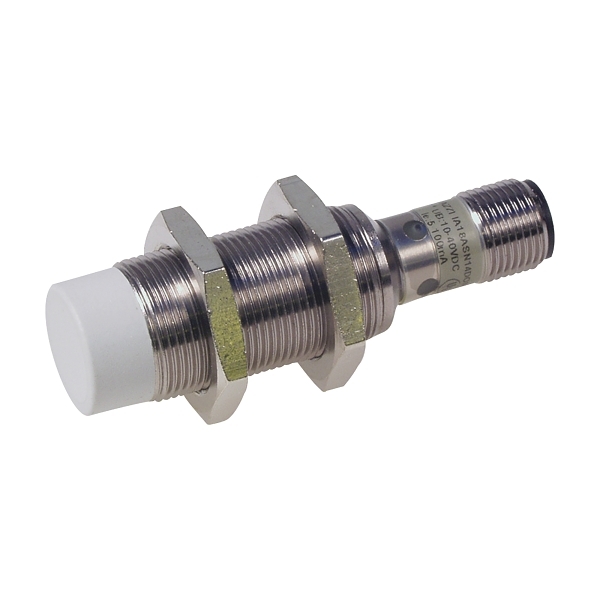

Product image is indicative only and provided as a guide.
Carlo Gavazzi
Carlo Gavazzi Inductive Proximity Nickel Brass Short M18 DC PNP + NPN NO Output 14mm Sense Dist M12
- Item No.:
- NIA18ASN14DOM1
- Product Range:
- Inductive Prox
Download product datasheet
Electrical
- Type of actuation
- Metallic Target
- Switching distance
- 14 mm
- Voltage type
- DC
- Rated control supply voltage Us at DC
- 10-40 V
- Max. output current at protected output
- 100 mA
- Type of switch function
- Normally open contact
- Type of switching output
- Other
- Switching frequency
- 400 Hz
- Type of electric connection
- Plug-in connection
Construction
- Construction type housing
- Cylinder, screw-thread
- Material housing
- Metal
- IP rating
- IP67
- Coating housing
- Nickel-plated
- Cascadable
- No
- Compression-resistant
- No
- Suitable for safety functions
- No
Dimensions
- Diameter sensor
- 18 mm
- Length of sensor
- 63 mm
- Cable length
- 0 m
- Weight (cable excluded)
- 26 g
Mechanical
- Mechanical mounting condition for sensor
- Not flat
Environment
- Storage temperature
- -30...80 °C
Certificates/Approvals
- SIL according to IEC 61508
- None
- Explosion safety category for gas
- None
- Explosion safety category for dust
- None
Communication
- Type of interface
- None
