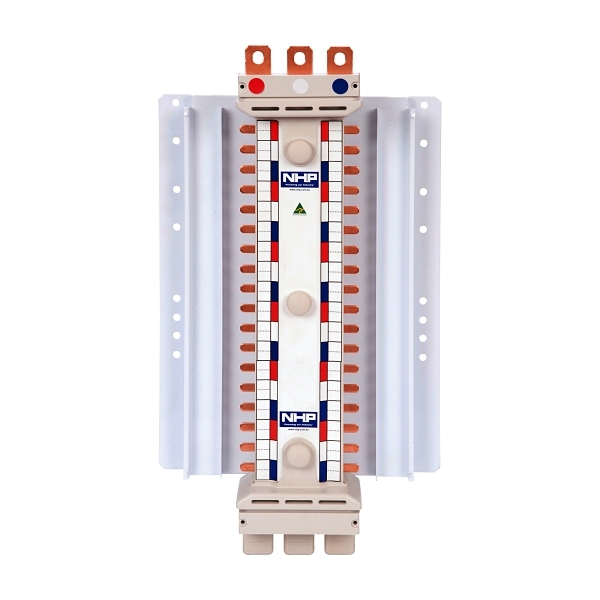

NHP POWERMAX DIN-T NC Busbar Chassis 400A 54 Way 3Pole Universal
Item No. NC454183U
Product Range: DIN-T NC BC
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current400 A
Number of poles54
Number of poles, 18mm pitch54
Number of phases input3-phase
Nominal voltage415 V
Short time withstand current Icw, 0.1 sec30 kA
Short time withstand current Icw, 0.3 sec25 kA
Short time withstand current Icw, 1 sec13 kA
Construction
Assembly arrangement18mm pitch
Material housingEncapsulated material
Tee-off isolatorNo
Capped tee-offs0.5
Degree of protection (IP)IP20
Dimensions
Depth82 mm
Height (pan)512 mm
