NHP MOD6+

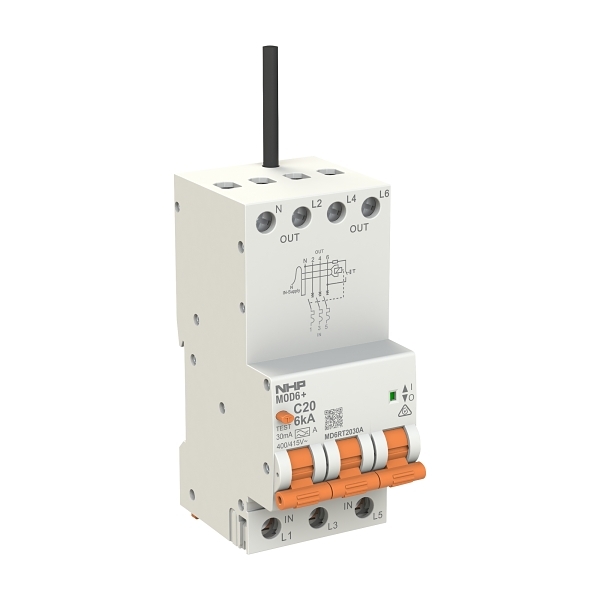

NHP MOD6+ RCBO 6kA 3 Pole and N 50A C Curve 30mA Type A (Longbody)
- Item No.:
- MD6RT5030A
- Product Range:
- MOD6+ Residual Current Devices
Download product datasheet

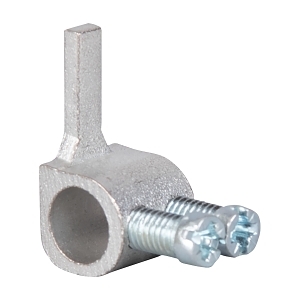

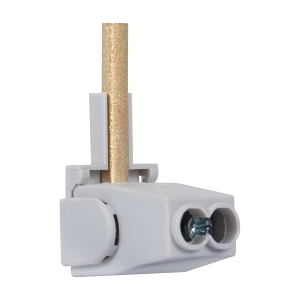

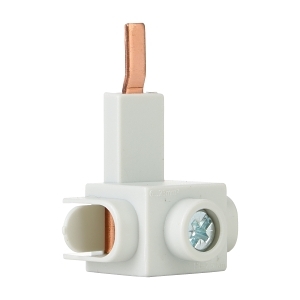

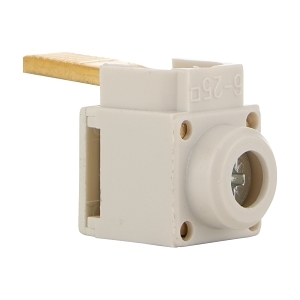

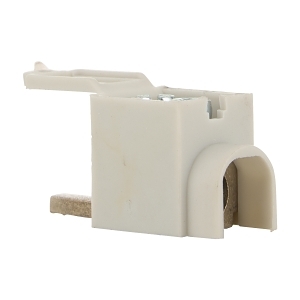

Popular Accessories
Electrical
- Rated current
- 50 A
- Rated voltage
- 415 V
- Rated leakage current
- 30 mA
- Frequency
- 50/60 Hz
- Rated short-circuit breaking capacity according to AS/NZS 61009
- 6 kA
- Voltage type
- AC
- Trip curve
- C
- Rated impulse withstand voltage Uimp
- 4 kV
- Leakage current type
- A
Construction
- Mounting method
- DIN rail
- IP rating
- IP40
- Number of protected poles
- 3
Mechanical
- Mechanical life (service cycles)
- 20000 cycles
- Disconnection characteristic
- Undelayed
- Connectable conductor cross section solid-core
- 1-25 mm²
- Connectable conductor cross section multi-wired
- 1-16 mm²
Dimensions
- Depth
- 77.1 mm
- Height
- 117.5 mm
- Width
- 54 mm
- Weight
- 0.55 kg
- Width in number of modular spacings
- 3
Environment
- Operating temperature
- -5...55 °C
- Pollution degree
- 2
