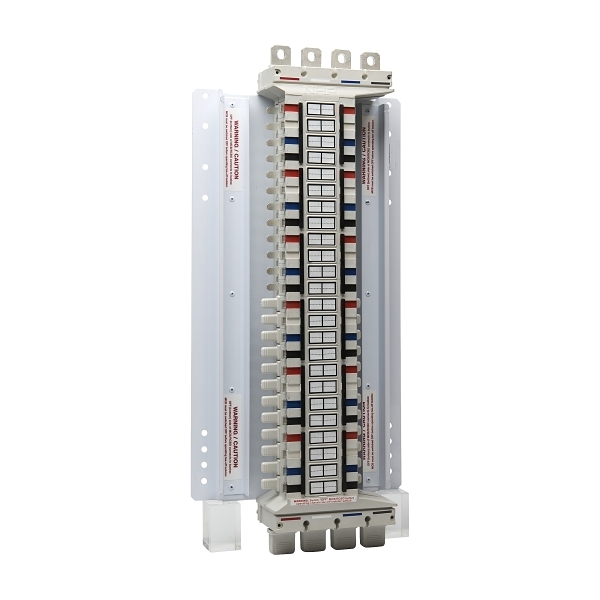

NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 96 Way 3Pole N Bottom Feed RWBN
Item No. GB296183PNBF
Product Range: DIN-T GB
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current250 A
Number of poles96
Number of poles, 18mm pitch96
Number of phases input3P+N
Nominal voltage415 V
Short time withstand current Icw, 0.2 sec25 kA
Short time withstand current Icw, 0.3 sec20 kA
Short time withstand current Icw, 1 sec10 kA
Construction
Assembly arrangement18mm pitch
Material housingEncapsulated material
Suitable for devices with N-conductorYes
Tee-off isolatorYes
Capped tee-offs0.5
Degree of protection (IP)IP20
Dimensions
Depth82 mm
Height (pan)896 mm
