NHP POWERMAX

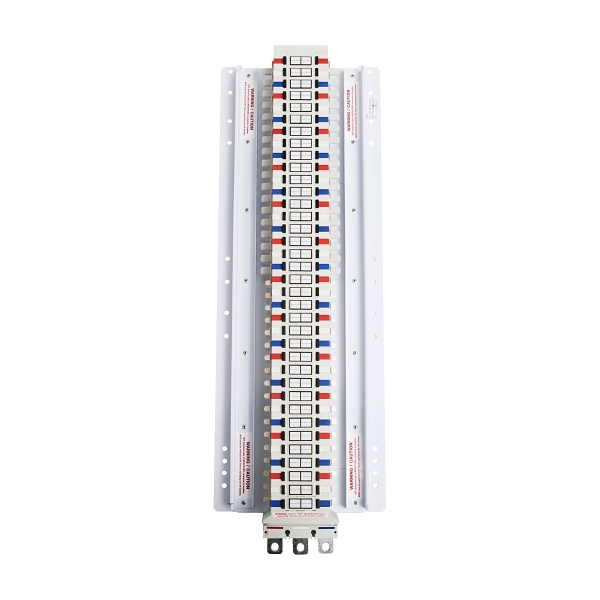

NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 84 Way 3Pole Bottom Feed
Item No. GB284183BF
Product Range: DIN-T GB
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current250 A
Number of poles84
Number of poles, 18mm pitch84
Number of phases input3-phase
Nominal voltage415 V
Short time withstand current Icw, 0.2 sec25 kA
Short time withstand current Icw, 0.3 sec20 kA
Short time withstand current Icw, 1 sec10 kA
Construction
Assembly arrangement18mm pitch
Material housingEncapsulated material
Tee-off isolatorYes
Capped tee-offs0.5
Degree of protection (IP)IP20
Dimensions
Depth82 mm
Height (pan)788 mm
