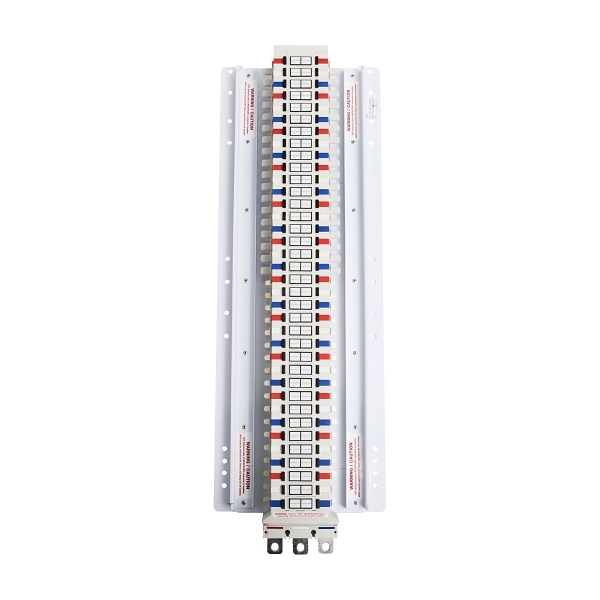

NHP POWERMAX GB Isolation Busbar Chassis DINT 250A 72 Way 2Pole Bottom Feed Red Black
Item No. GB272182BF
Product Range: DIN-T GB
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current250 A
Number of poles72
Number of poles, 18mm pitch72
Number of phases input1P+N
Nominal voltage415 V
Short time withstand current Icw, 0.2 sec25 kA
Short time withstand current Icw, 0.3 sec20 kA
Short time withstand current Icw, 1 sec10 kA
Construction
Assembly arrangement18mm pitch
Material housingEncapsulated material
Suitable for devices with N-conductorYes
Tee-off isolatorYes
Capped tee-offs0.5
Degree of protection (IP)IP20
Dimensions
Depth82 mm
Height (pan)680 mm
