NHP POWERMAX

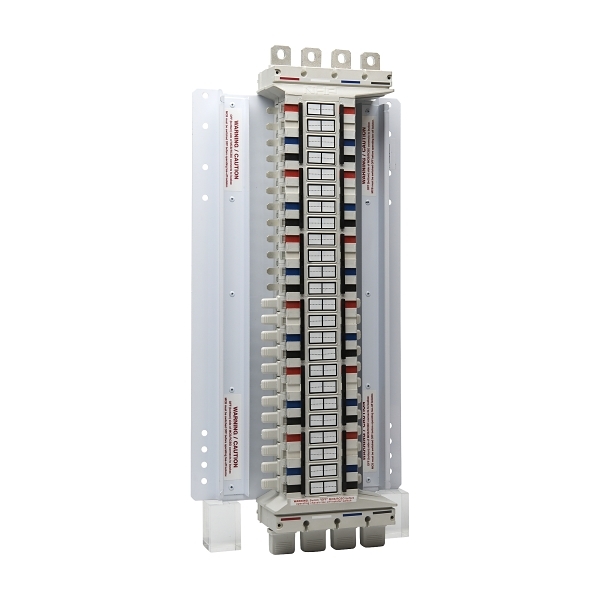

NHP POWERMAX GB Isolation Busbar Chassis DIN-T 250A 24 Way 3Pole plus Neutral Top Feed RWBN
- Item No.:
- GB224183PNTF
- Product Range:
- DIN-T GB
Download product datasheet

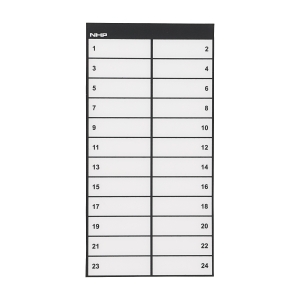

Popular Accessories
Electrical
- Rated current
- 250 A
- Number of poles
- 24
- Number of poles, 18mm pitch
- 24
- Number of phases input
- 3P+N
- Nominal voltage
- 415 V
- Short time withstand current Icw, 0.2 sec
- 25 kA
- Short time withstand current Icw, 0.3 sec
- 20 kA
- Short time withstand current Icw, 1 sec
- 10 kA
Construction
- Assembly arrangement
- 18mm pitch
- Material housing
- Encapsulated material
- Suitable for devices with N-conductor
- Yes
- Tee-off isolator
- Yes
- Capped tee-offs
- 0.5
- IP rating
- IP20
Dimensions
- Depth
- 82 mm
- Height (pan)
- 248 mm
