Product image is indicative only and provided as a guide.
CUBIC

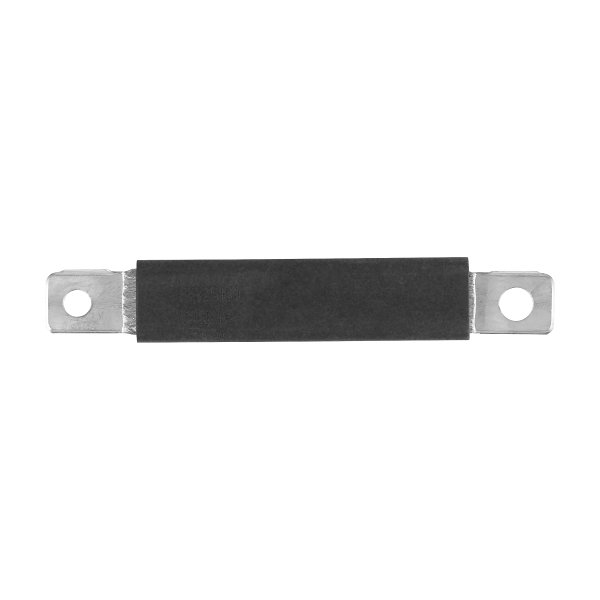

CUBIC CuFlex Flexible Copper Busbar 243mm2 Length 864mm Black/Dark Grey
- Item No.:
- FB243864T
- Product Range:
- CuFlex
Download product datasheet

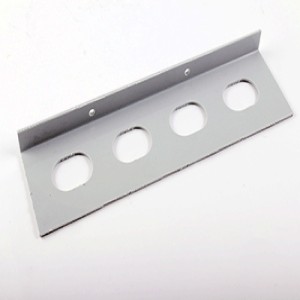

Popular Accessories
Dimensions
- Length
- 864 mm
- Width
- 30 mm
- Height
- 6.5 mm
- Wire/conductor size
- 240 mm
Construction
- Flexible
- Yes
- Colour housing
- Grey/black
- Fire resistant properties
- According to UL94 V0
- Model
- Flat
- Surface protection
- Tinned
Electrical
- Rated current In
- 690 A
- Rated current x1 busbar to busbar deltaT 30K-65K
- 565-835 A
- Rated current x2 busbar to busbar deltaT 30K-65K
- 870-1285 A
- Rated current x1 busbar to component deltaT 40K-55K
- 370-435 A
- Rated current x2 busbar to component deltaT 40K-55K
- 572-673 A
- Rated current x1 component to component deltaT 40K-55K
- 370-435 A
- Rated current x2 component to component deltaT 40K-55K
- 481-562 A
- Nominal voltage
- 1000 V
- Rated short-time withstand current lcc
- 64 A
Environment
- Max. operating temperature
- 105 °C
