Product image is indicative only and provided as a guide.
Carlo Gavazzi

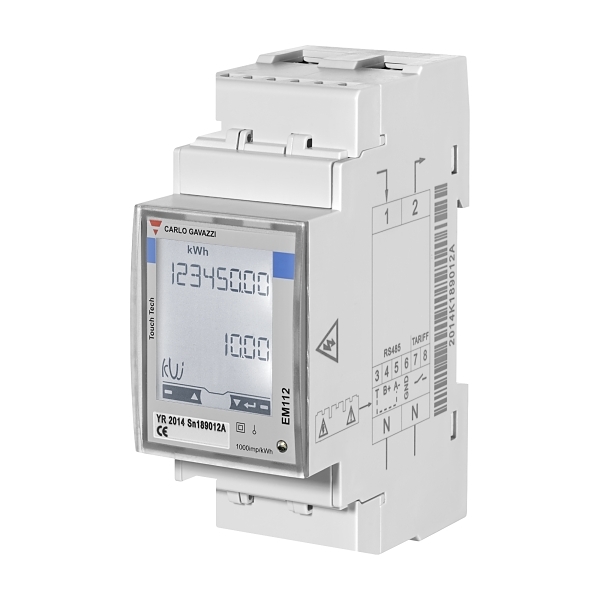

Carlo Gavazzi EM112 Direct Connect Meter 100A 2 DIN plus RS485
- Item No.:
- EM112DINAV01XS1X
- Product Range:
- EM111
Download product datasheet
Electrical
- Nominal current (In)
- 5 A
- Nominal voltage (Un) N-L
- 230-230 V
- Sampling frequency
- 4096 Hz
- Rated insulation voltage Ui
- 4000 V
- Pulse counter
- No
- Pulse rate
- 1000-1000 Imp/kWh (kvarh)
- Refresh time
- 1 s
- Pole type
- Single phase
- Type of display
- LCD
Construction
- Display
- 8 digits
- Terminal type
- Screw
- Mounting method
- DIN rail
- Material housing
- Nylon
- With lock code
- Yes
Communication
- Tariff control
- External
- Tariff type
- Two-tariff
- Supporting protocol for Modbus
- Yes
- Supporting protocol for other bus systems
- No
Dimensions
- Height
- 90 mm
- Width
- 35 mm
- Depth
- 63 mm
- Weight
- 0.16 kg
- Width in number of modular spacings
- 2
Environment
- Operating temperature
- -25...55 °C
- Storage temperature
- -30...80 °C
