Steute

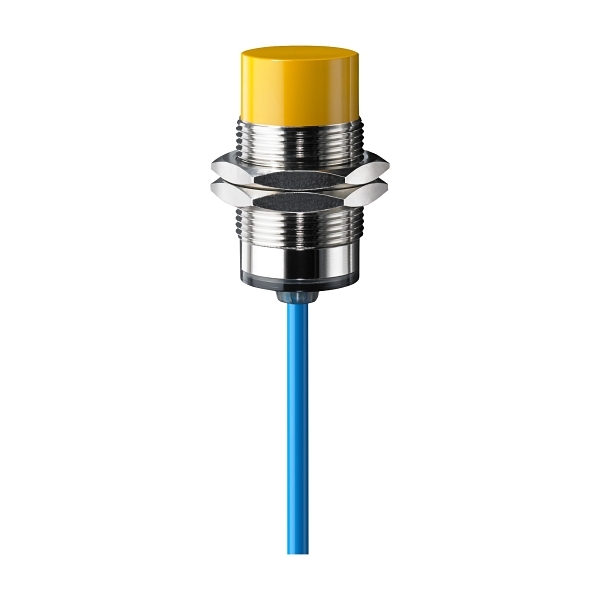

Steute HAE Sensor Ex 1,2,21,22 i Inductive Sensor SS Namur 15mm Sensing Distance 2m
Item No. EEXISM30NB15ABBAB
Product Range: HAE Limit Switch
Component Type (ETIM Class)
Inductive proximity switch
Electrical
Type of actuationMetallic Target
Switching distance15 mm
Voltage typeDC
Rated control supply voltage Us at DC8.2-8.2 V
Max. output current at protected output3 mA
Type of switch functionOther
Type of switching outputNAMUR
Switching frequency500 Hz
Type of electric connectionCable
Communication
Type of interfaceNone
Construction
Construction type housingCylinder, screw-thread
Material housingStainless steel
Degree of protection (IP)IP67
Coating housingOther
CascadableNo
Compression-resistantNo
Suitable for safety functionsNo
Mechanical
Mechanical mounting condition for sensorNot flat
Dimensions
Diameter sensor30 mm
Length of sensor45 mm
Length, Cable2 m
Weight (cable excluded)146 g
Environment
Storage temperature-25-60 °C
Certificates/Approvals
SIL according to IEC 61508None
Explosion safety category for gasOther
Explosion safety category for dustOther
