Steute

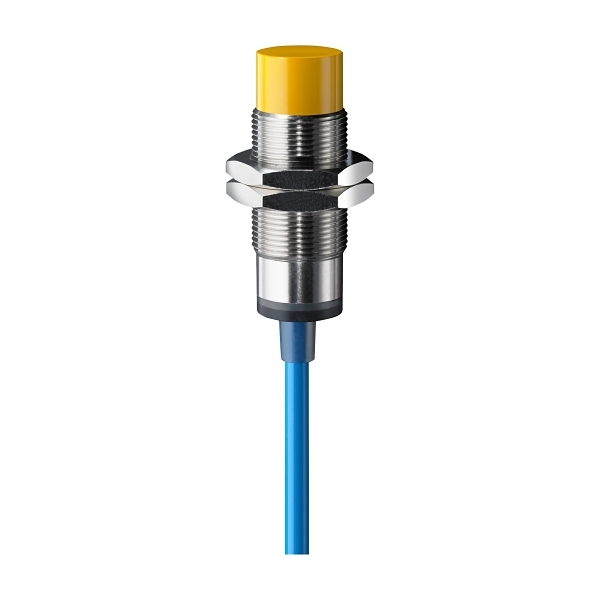

Steute HAE Sensor Ex 1,2,21,22 i Inductive Sensor Namur 8mm Sensing Distance
Item No. EEXISM18NB8ABBAB
Product Range: HAE Limit Switch
Component Type (ETIM Class)
Inductive proximity switch
Electrical
Type of actuationMetallic Target
Switching distance8 mm
Voltage typeDC
Rated control supply voltage Us at DC8.2-8.2 V
Max. output current at protected output3 mA
Type of switch functionOther
Type of switching outputNAMUR
Switching frequency1000 Hz
Type of electric connectionOther
Communication
Type of interfaceNone
Construction
Construction type housingCylinder, screw-thread
Material housingStainless steel
IP ratingIP68
Coating housingOther
CascadableNo
Compression-resistantNo
Suitable for safety functionsNo
Mechanical
Mechanical mounting condition for sensorNot flat
Dimensions
Diameter sensor18 mm
Length of sensor50 mm
Cable length2 m
Weight (cable excluded)112 g
Environment
Storage temperature-25-60 °C
Certificates/Approvals
SIL according to IEC 61508None
Explosion safety category for gasOther
Explosion safety category for dustOther
