NHP DIN-T

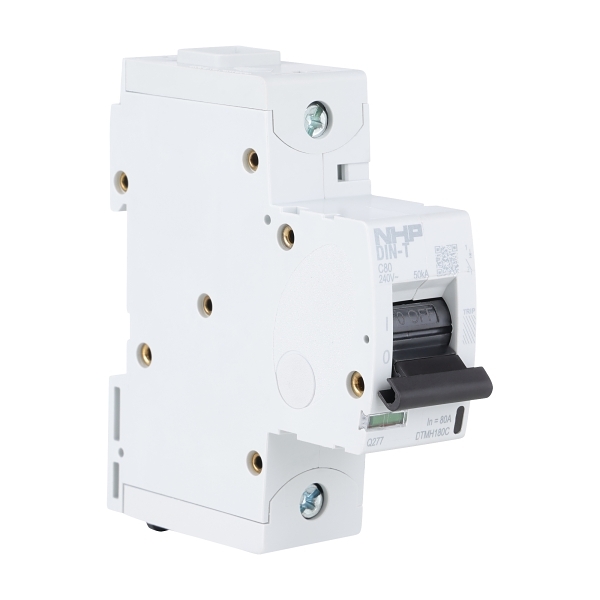

NHP DIN-T Miniature Circuit Breaker 10H 1Pole 80A C Curve
- Item No.:
- DTMH180C
- Product Range:
- DIN-T MCB
Download product datasheet

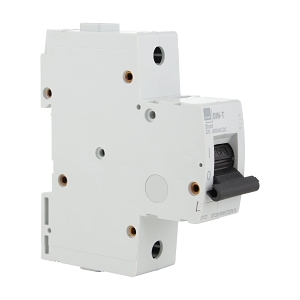

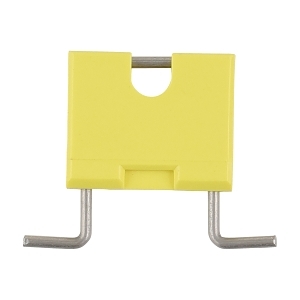

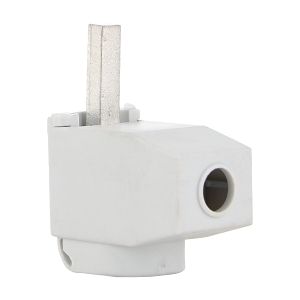

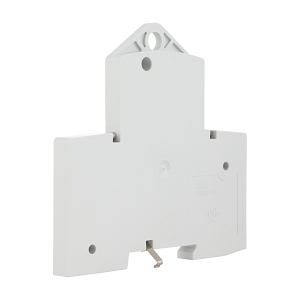

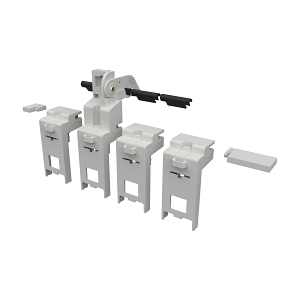

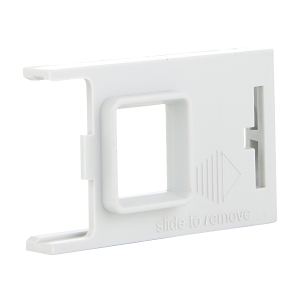

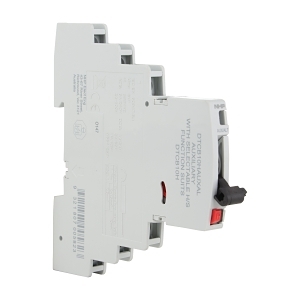

Popular Accessories
Electrical
- Rated current
- 80 A
- Number of poles (total)
- 1
- Trip curve
- C
- Rated voltage
- 240 V
- Frequency
- 50-60 Hz
- Voltage type
- AC/DC
- Rated ultimate short-circuit breaking capacity, Icu 125V DC
- 30 kA
- Service voltage Ub, AC
- 12 V
- Service voltage Ub, DC
- 12 V
Environment
- Pollution degree
- 3
- Rated surrounding temperature without derating
- 30 °C
- Rated temperature
- -25...60 °C
Dimensions
- Height
- 100 mm
- Width
- 27 mm
- Depth
- 90 mm
- Width in number of modular spacings
- 1
- Weight
- 0.74 kg
Mechanical
- Connectable conductor cross section solid-core
- 1-70 mm²
- Connectable conductor cross section multi-wired
- 1-50 mm²
Construction
- Number of protected poles
- 1
- IP rating
- IP40
