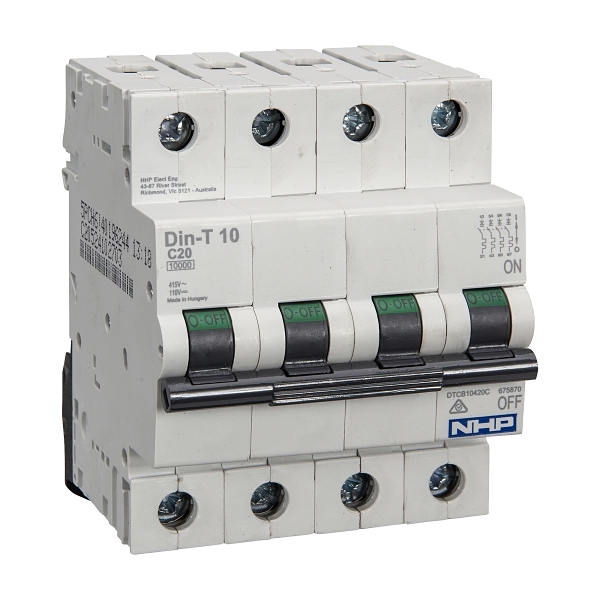

Product image is indicative only and provided as a guide.
NHP DIN-T
NHP DIN-T Miniature Circuit Breaker 10kA 4Pole 6A C Curve
- Item No.:
- DTCB10406C
- Product Range:
- DIN-T MCB
Download product datasheet
Popular Accessories
Electrical
- Rated current
- 6 A
- Number of poles (total)
- 4
- Trip curve
- C
- Rated voltage
- 415 V
- Frequency
- 50-60 Hz
- Voltage type
- AC/DC
- Service voltage Ub, AC
- 12 V
- Service voltage Ub, DC
- 12 V
- Nominal operating voltage Un, DC
- 110 V
Environment
- Pollution degree
- 3
- Rated surrounding temperature without derating
- 30 °C
- Rated temperature
- -25...70 °C
Dimensions
- Height
- 86 mm
- Width
- 72 mm
- Depth
- 76 mm
- Width in number of modular spacings
- 4
- Weight
- 0.48 kg
Mechanical
- Connectable conductor cross section solid-core
- 1-35 mm²
- Connectable conductor cross section multi-wired
- 1-25 mm²
Construction
- Number of protected poles
- 4
- IP rating
- IP40
