NHP

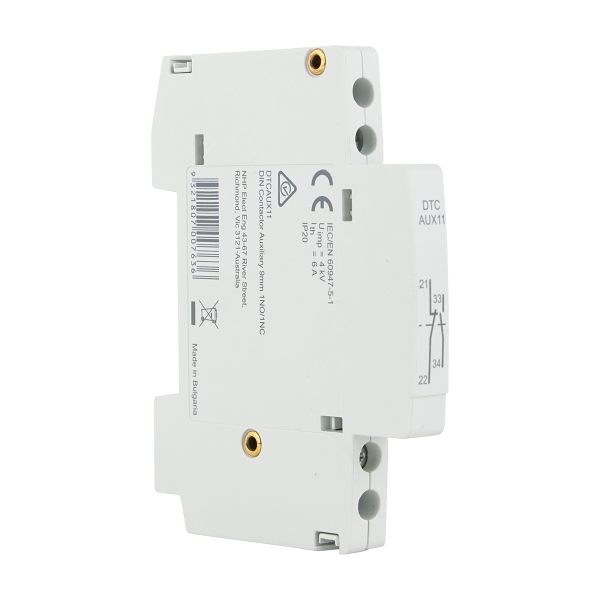

NHP DIN-T Contactors Auxiliary 9mm 1 Normally Open 1 Normally Closed Contacts
- Item No.:
- DTCAUX11
- Product Range:
- DIN Contactors
Download product datasheet
Electrical
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Rated insulation voltage Ui
- 500 V
- Rated operation current Ie at AC-15, 24 V
- 6 A
- Rated operation current Ie at AC-15, 120 V
- 6 A
- Rated operation current Ie at AC-15, 240 V
- 4 A
- Rated operation current Ie at AC-15, 400 V
- 3 A
- Rated operation current Ie at DC-13, 125 V
- 0.55 A
- Rated operation current Ie at DC-13, 250 V
- 0.27 A
Construction
- Mounting method
- Side mounting
