Cirprotec

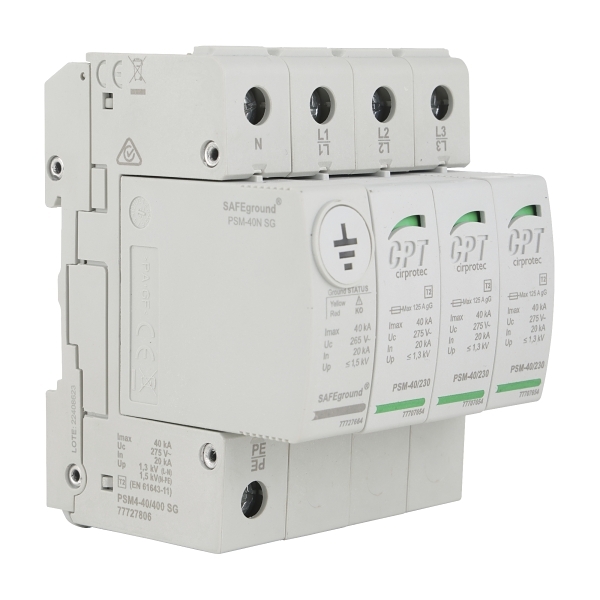

Cirprotec PSM Surge Protection Device Type 2 3 Phase L-L and L-N, N-PE Imax 40kA 400Vac Safeground
Item No. CPTPSM440400SG
Product Range: PSM
Component Type (ETIM Class)
Surge protection device for power supply systems
Electrical
Max. discharge surge current (8/20)40 kA
Protection classII
Nominal voltage AC400 V
Max. continuous voltage AC320 V
Voltage protection level1.3 kV
Construction
Mounting methodDIN rail (top hat rail) 35 mm
Construction size4 modular spacing
Degree of protection (IP)IP20
Mechanical
Max. conductor cross section solid (solid, stranded)35 mm²
Max. conductor cross section flexible (fine-strand)25 mm²
