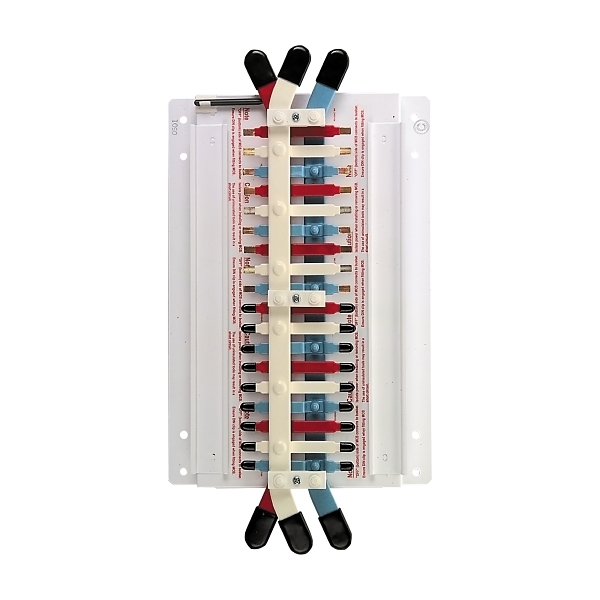

NHP POWERMAX Busbar Chassis - General CD DINT 250A 12 Way 3Pole Universal
Item No. CD212183U
Product Range: Busbar Chassis
Component Type (ETIM Class)
Distributor assembly busbars
Electrical
Rated current250 A
Number of poles12
Number of poles, 18mm pitch12
Number of phases input3-phase
Nominal voltage415 V
Short time withstand current Icw, 0.2 sec20 kA
Short time withstand current Icw, 1 sec9 kA
Construction
Assembly arrangement18mm pitch
Material housingDipped housing
Tee-off isolatorNo
Capped tee-offs0.5
Degree of protection (IP)IP20
Dimensions
Depth82 mm
Height (pan)152 mm
