Socomec

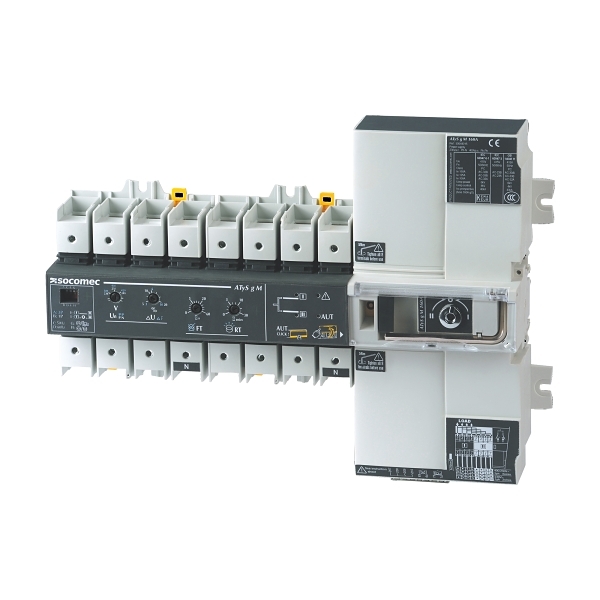

Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 4 Pole 63A
Item No. 93544006
Product Range: ATyS M Automatic
Component Type (ETIM Class)
Switch disconnector
Electrical
Rated operating voltage Ue800 V
Max. rated operation voltage Ue AC800 V
Rated permanent current at AC-21, 400 V63 A
Rated control supply voltage Us at AC 50HZ400690 V
Rated permanent current Iu63 A
Number of poles4
Rated operation power at AC-23, 400 V30 kW
Rated short-time withstand current lcw4 kA
Type of control elementOther
Construction
Device constructionBuilt-in device fixed built-in technique
Colour control elementOther
Degree of protection (IP), front sideIP20
Version as main switchYes
Version as maintenance-/service switchYes
Version as safety switchYes
Version as emergency stop installationNo
Version as reversing switchYes
Number of switches2
Mechanical
Padlock lockingYes
Dimensions
Height245 mm
Width324 mm
Depth73.5 mm
Weight4.34 kg
NHP Socomec Automatic Transfer Switches Brochure
BRANDSocomec
FILE SIZE(29 MB)
FILE TYPEPDF
Automatic Transfer Switches
Transfer Switches
Remote Transfer Switches
Title | Brand | Type | File Size | Categories | Download |
---|---|---|---|---|---|
ATYS M 2P and 4P Transfer Swicthes 3D CAD Files CAD Block | Socomec | 3D | 10 MB | Automatic Transfer SwitchesTransfer Switches | |
Socomec ATYS M 2P and 4P Transfer Swicthes 2D CAD Blocks CAD Block | Socomec | 2D | 14 MB | Automatic Transfer SwitchesTransfer Switches |
