Product image is indicative only and provided as a guide.
Finder

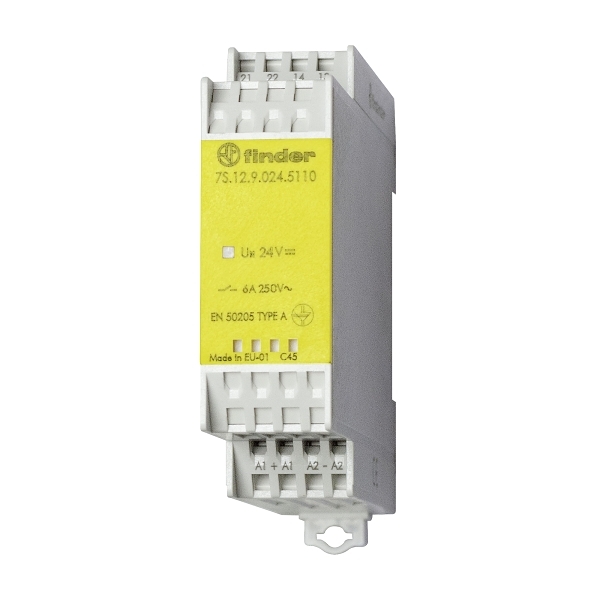

Finder 7S Series Safety Relay Forcibly Guided 6A 1 N.O. 1 N.C. 240V AC Coil Gold Contacts
- Item No.:
- 7S1282305110
- Product Range:
- Safety Relay
Download product datasheet
Electrical
- Nominal current
- 6 A
- Nominal voltage AC
- 250 V
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Rated switching power at AC-1
- 1500 VA
- Rated switching power at AC-15, 230V
- 700 VA
- Breaking capacity at DC-1, 30V
- 6 A
- Breaking capacity at DC-1, 110V
- 0.6 A
- Voltage type for actuating
- AC
Dimensions
- Width
- 22.5 mm
- Height
- 78.8 mm
- Depth
- 96 mm
Mechanical
- Mechanical life (service cycles)
- 10000000 cycles
- Max. shock acceleration
- 20 g
- Max. shock duration
- 8 ms
- Max. vibration acceleration
- 10 m/s²
- Max. vibration frequency, operational
- 200 Hz
- With detachable clamps
- No
Environment
- Operating temperature
- -40...70 °C
Construction
- IP rating
- IP20
