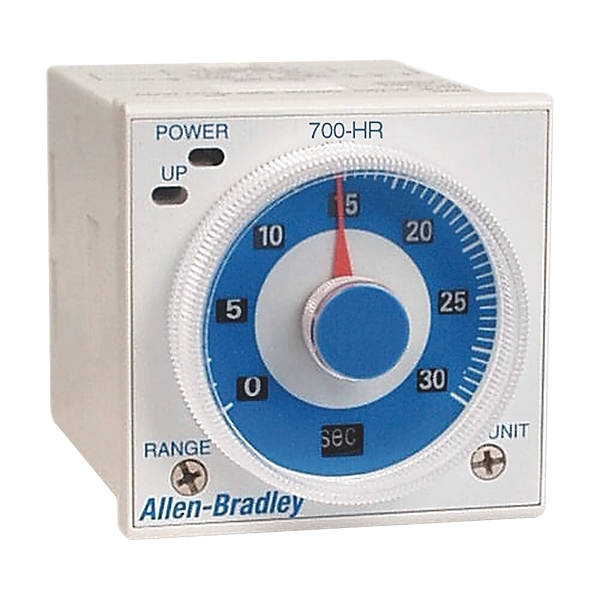

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 700-HR Dial Timing Relay On Delay 2CO 0.05sec to 300Hours 100 to 240VAC100 to 125V DC
- Item No.:
- 700HRC12TA17
- Product Range:
- Timer Relay
Download product datasheet
Electrical
- Voltage type for actuating
- AC/DC
- Rated control supply voltage Us at DC
- 24-48 V
- Rated control supply voltage Us at AC 60HZ
- 100-240 V
- Rated control supply voltage Us at AC 50HZ
- 24-240 V
- Number of outputs, delayed, change-over contact
- 1
- Nominal current
- 5 A
- Rated operation current Ie at AC-15, 250 V
- 3 A
- Type of electric connection
- Screw connection
- Function delay-on energization
- Yes
Mechanical
- Suitable for DIN rail (top hat rail) mounting
- Yes
- Mechanical lifetime (control contacts)
- 30000000 c (contacts)
- Max. shock acceleration
- 50 g
- Max. vibration acceleration
- 4 m/s²
- Max. vibration frequency, operational
- 100 Hz
Dimensions
- Height
- 80 mm
- Depth
- 109 mm
- Width
- 22.5 mm
Environment
- Operating temperature
- -25...45 °C
