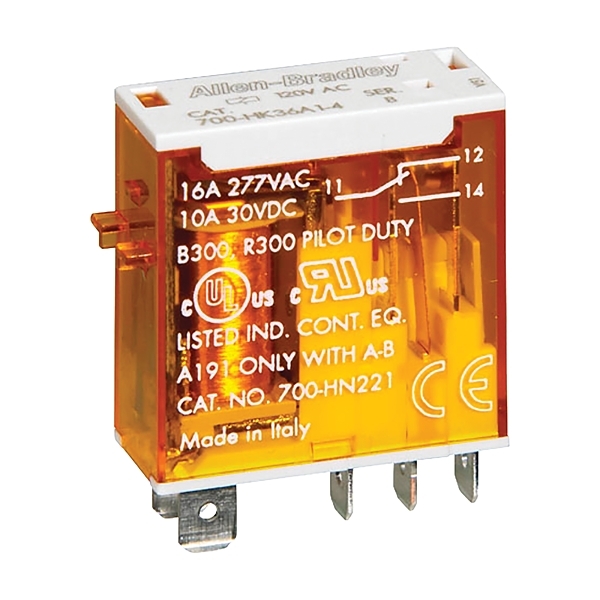

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 700-HK Slim Line Relay 16A 1CO SPDT 24V DC Coil with Pushbutton + LED
- Item No.:
- 700HK36Z2434
- Product Range:
- 700HK
Download product datasheet
Electrical
- Nominal current
- 16 A
- Nominal voltage AC
- 250 V
- Number of contacts as change-over contact
- 1
- Rated switching power at AC-1
- 4000 VA
- Rated switching power at AC-15, 230V
- 750 VA
- Breaking capacity at DC-1, 30V
- 12 A
- Voltage type for actuating
- DC
- Control supply voltage Us at DC
- 24 V
- With LED indication
- Yes
Construction
- Material contact
- Silver nickel
- With latching test button
- Yes
- Suitable for plug-in socket mounting
- Yes
- IP rating
- IP20
Dimensions
- Width
- 12.4 mm
- Height
- 29 mm
- Depth
- 39.3 mm
Mechanical
- Mechanical life (service cycles)
- 10000000 cycles
- Max. shock acceleration
- 50 g
- Max. vibration acceleration
- 5 m/s²
- Max. vibration frequency, operational
- 2000 Hz
Environment
- Operating temperature
- -40...70 °C
