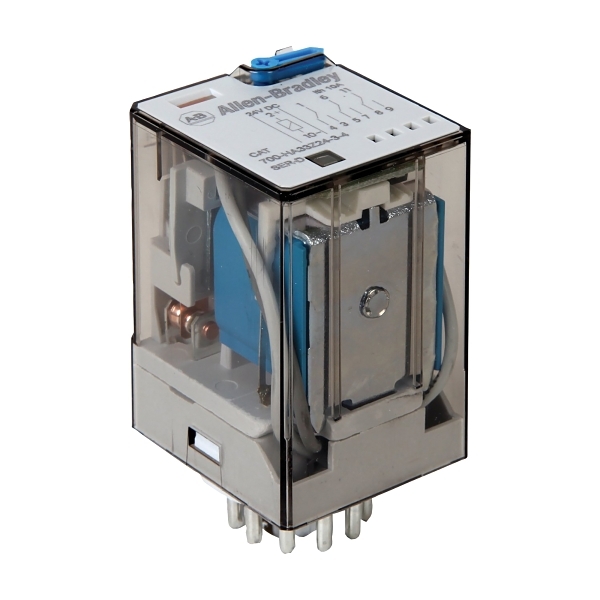

Product image is indicative only and provided as a guide.
Allen-Bradley
Allen-Bradley 700-HA Tube Base Relay 10A 2CO 240VAC Coil with Pushbutton + LED
- Item No.:
- 700HA32A234L
- Product Range:
- Panel Mount and Power Relays
Download product datasheet
Electrical
- Nominal current
- 10 A
- Nominal voltage AC
- 250 V
- Number of contacts as change-over contact
- 2
- Rated switching power at AC-1
- 2500 VA
- Rated switching power at AC-15, 230V
- 500 VA
- Breaking capacity at DC-1, 30V
- 10 A
- Voltage type for actuating
- AC
- Control supply voltage Us at AC 50HZ
- 240 V
- Control supply voltage Us at AC 60HZ
- 240 V
Construction
- Material contact
- Silver nickel
- With latching test button
- Yes
- Suitable for plug-in socket mounting
- Yes
- IP rating
- IP40
Dimensions
- Width
- 32.8 mm
- Height
- 36.5 mm
- Depth
- 54.1 mm
Mechanical
- Mechanical life (service cycles)
- 20000000 cycles
- Max. shock acceleration
- 50 g
- Max. vibration acceleration
- 5 m/s²
Environment
- Operating temperature
- -40...70 °C
