Finder

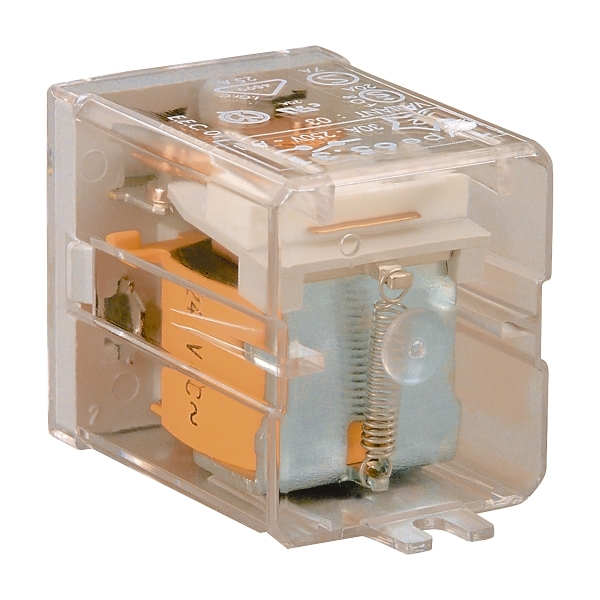

Finder 65 Series Power Relay Flange Mount 20A 24V DC Coil 1NO 1NC Contacts
- Item No.:
- 653124VDC
- Product Range:
- Panel Mount and Power Relay
Download product datasheet
Electrical
- Nominal current
- 20 A
- Nominal voltage AC
- 250 V
- Max. rated operation voltage Ue AC
- 400 V
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Drive, switching attitude
- Mono stable
- Rated switching power at AC-1
- 5000 VA
- Rated switching power at AC-15, 230V
- 1000 VA
- Breaking capacity at DC-1, 30V
- 20 A
Construction
- Material contact
- Silver cadmium-oxide
- Suitable for flange mounting
- Yes
Dimensions
- Width
- 32.2 mm
- Height
- 36.5 mm
- Depth
- 57.2 mm
Mechanical
- Mechanical life (service cycles)
- 30000000 cycles
- Max. shock acceleration
- 20 g
- Max. shock duration
- 6 ms
- Max. vibration acceleration
- 20 m/s²
- Max. vibration frequency, operational
- 150 Hz
Environment
- Operating temperature
- -40...75 °C
