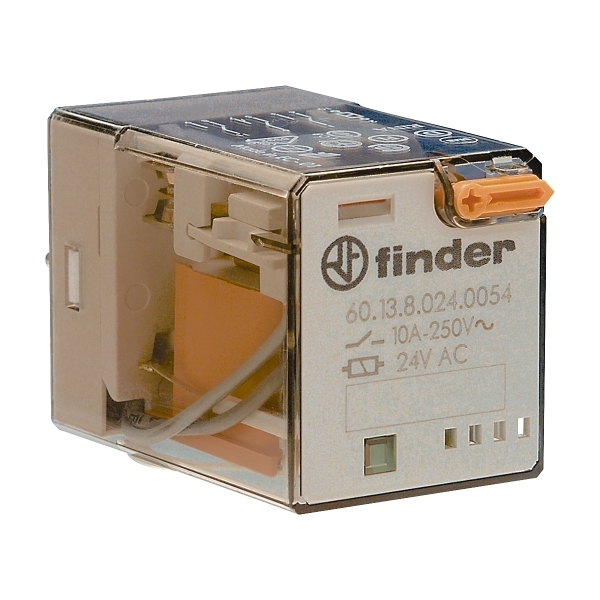

Finder 60 Series General Purpose Relay 10A 3CO 32V AC Coil with PB plus Mechanical Indicator

Item No. 601332VACRLY
Product Range: Panel Mount and Power Relay
Component Type (ETIM Class)
Switching relay
Electrical
Nominal current10 A
Nominal voltage AC250 V
Max. rated operation voltage Ue AC400 V
Number of contacts as change-over contact3
Drive, switching attitudeMono stable
Rated switching power at AC-12500 VA
Rated switching power at AC-15, 230V500 VA
Breaking capacity at DC-1, 30V10 A
Breaking capacity at DC-1, 110V0.4 A
Construction
Material contactSilver nickel
With mechanical indicatorYes
With latching test buttonYes
Suitable for plug-in socket mountingYes
Mechanical
Mechanical life (service cycles)20000000 cycles
Max. shock acceleration20 g
Max. shock duration4 ms
Max. vibration acceleration22 m/s²
Max. vibration frequency, operational55 Hz
Dimensions
Width32.5 mm
Height36.4 mm
Depth54.2 mm
Environment
Operating temperature-40-70 °C
