Product image is indicative only and provided as a guide.
Finder

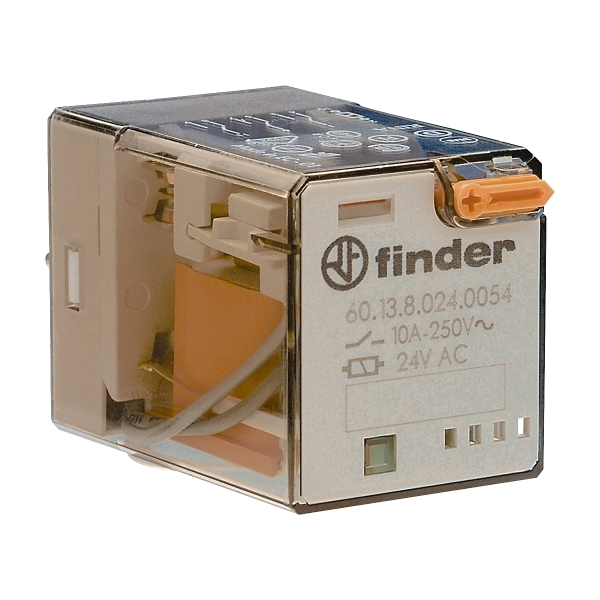

Finder 60 Series General Purpose Relay 10A 3CO 240V AC Coil with PB plus Mechanical Indicator
- Item No.:
- 6013240VACRLY
- Product Range:
- Panel Mount and Power Relay
Download product datasheet

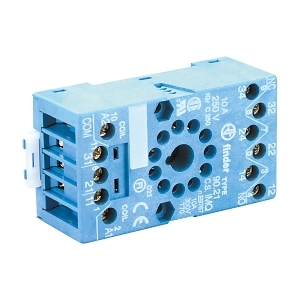

Popular Accessories
Electrical
- Nominal current
- 10 A
- Nominal voltage AC
- 250 V
- Max. rated operation voltage Ue AC
- 400 V
- Number of contacts as change-over contact
- 3
- Drive, switching attitude
- Mono stable
- Rated switching power at AC-1
- 2500 VA
- Rated switching power at AC-15, 230V
- 500 VA
- Breaking capacity at DC-1, 30V
- 10 A
- Breaking capacity at DC-1, 110V
- 0.4 A
Construction
- Material contact
- Silver nickel
- With mechanical indicator
- Yes
- With latching test button
- Yes
- Suitable for plug-in socket mounting
- Yes
Dimensions
- Width
- 32.5 mm
- Height
- 36.4 mm
- Depth
- 54.2 mm
Mechanical
- Mechanical life (service cycles)
- 20000000 cycles
- Max. shock acceleration
- 20 g
- Max. shock duration
- 4 ms
- Max. vibration acceleration
- 22 m/s²
- Max. vibration frequency, operational
- 55 Hz
Environment
- Operating temperature
- -40...70 °C
