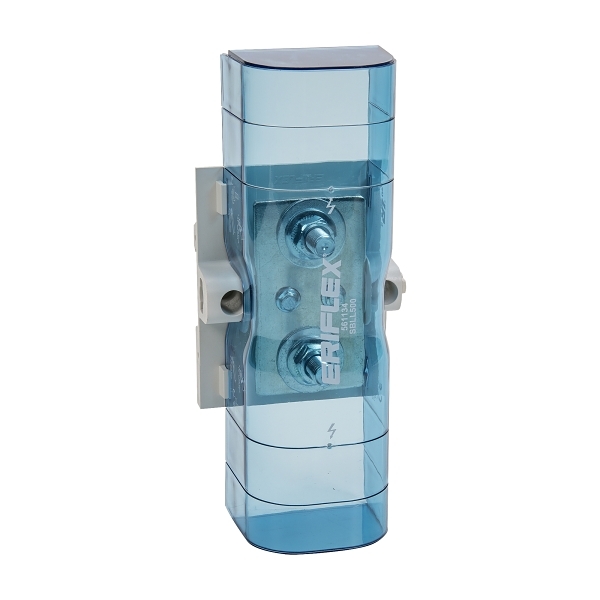

Product image is indicative only and provided as a guide.
nVent ERIFLEX
nVent ERIFLEX High Current Terminal 1250A In 2xM10 Lug 35to300mm Busbar 20to40mm Out 2x95to240mm
- Item No.:
- 561146
- Product Range:
- High Current Terminal
Download product datasheet
Popular Accessories
Electrical
- Number of poles
- 1
- Rated insulation voltage Ui
- 1000 V
- Short time withstand current Icw, 1 sec
- 57.6 kA
- Max. rated current
- 1250 A
Dimensions
- Height
- 205.7 mm
- Width
- 115 mm
- Depth
- 75 mm
Construction
- Conductor material
- Aluminium/copper
- With PE-rail
- No
- With N-rail
- No
