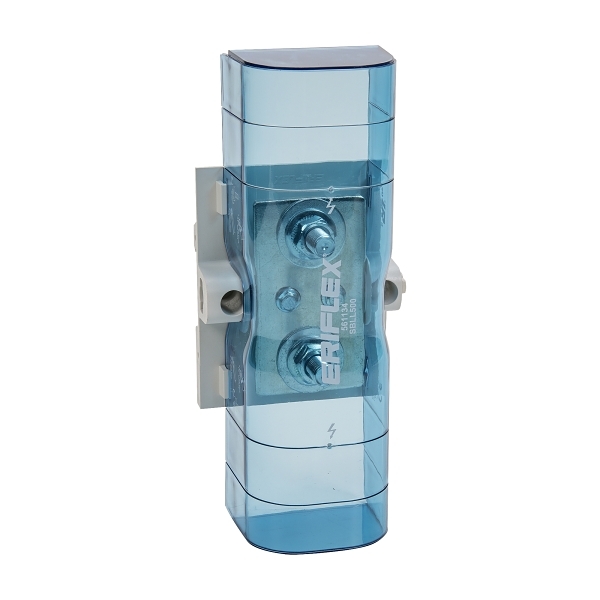

Product image is indicative only and provided as a guide.
nVent ERIFLEX
nVent ERIFLEX High Current Terminal 750A In and Out 2 x 16 to 120mm
- Item No.:
- 561145
- Product Range:
- High Current Terminal
Download product datasheet
Popular Accessories
Electrical
- Number of poles
- 1
- Rated insulation voltage Ui
- 1000 V
- Short time withstand current Icw, 1 sec
- 28.8 kA
- Max. rated current
- 750 A
Dimensions
- Height
- 205.7 mm
- Width
- 85.1 mm
- Depth
- 66 mm
Construction
- Conductor material
- Aluminium/copper
- With PE-rail
- No
- With N-rail
- No
