nVent ERIFLEX

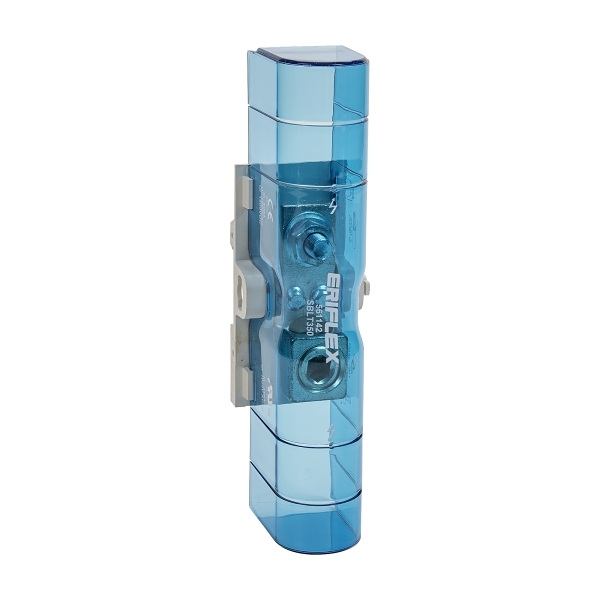

nVent ERIFLEX High Current Terminal 500A In 1xM10 Lug 10to185mm Busbar 20to24mm Out 1x35 to 185mm
- Item No.:
- 561142
- Product Range:
- High Current Terminal
Download product datasheet
Popular Accessories
Electrical
- Number of poles
- 1
- Rated insulation voltage Ui
- 1000 V
- Short time withstand current Icw, 1 sec
- 22.2 kA
- Max. rated current
- 500 A
Dimensions
- Height
- 205.7 mm
- Width
- 52.3 mm
- Depth
- 65 mm
Construction
- Conductor material
- Aluminium/copper
- With PE-rail
- No
- With N-rail
- No
