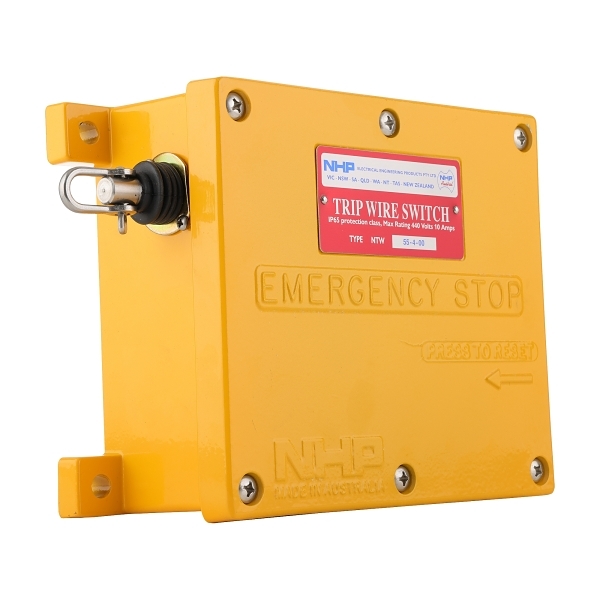

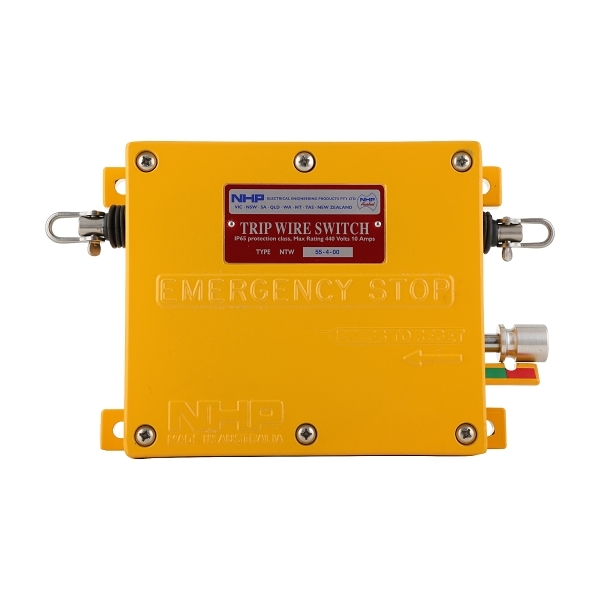

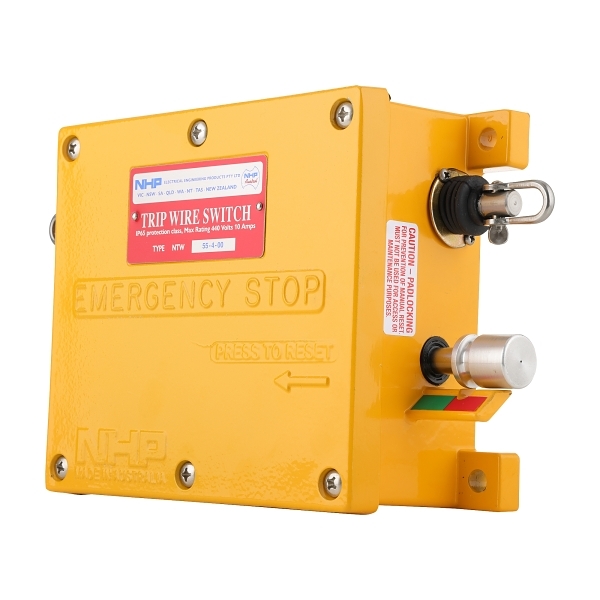

55400NBB Cable Pull Wire Switch

NHP Austrol

Austrol Cable Pull Wire Switch Trip Wire Switch 2 Normally Closed Contacts 2 Normally Open Contacts

Item No.:
55400NBB
Product Range:
NHP Austrol

Download product datasheet

Construction

Emergency stop button
No
Material housing
Aluminium die-cast
Colour
Yellow
IP rating
IP65/IP67

Electrical

Number of contacts as normally open contact
2
Number of contacts as normally closed contact
2
Rated insulation voltage Ui
600 V
Rated operation current Ie at AC-15, 240 V
3 A
Rated operation current Ie at AC-15, 415 V
1.5 A
Rated operation current Ie at DC-12, 32 V
10 A
Rated operation current Ie at DC-12, 110 V
5 A
Rated operation current Ie at DC-12, 240 V
2 A
Rated operation current Ie at DC-13, 32 V
10 A

Dimensions

Height
189 mm
Width
284 mm
Depth
124 mm
